SPECIFICATIONS

Accessory Type: Battery Accessories

Battery Included: No

Battery Strings: 1S-24S

Battery Type: Li-ion/Lifepo4/Lto

Brand Name: ENERKEY

Certification: CE

Charger included: N

Electronic: No

High-concerned chemical: None

Model Number: EK-SA-BV24S

Origin: Mainland China

Product Name: 24S Battery Voltage Tester

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

Product Parameters

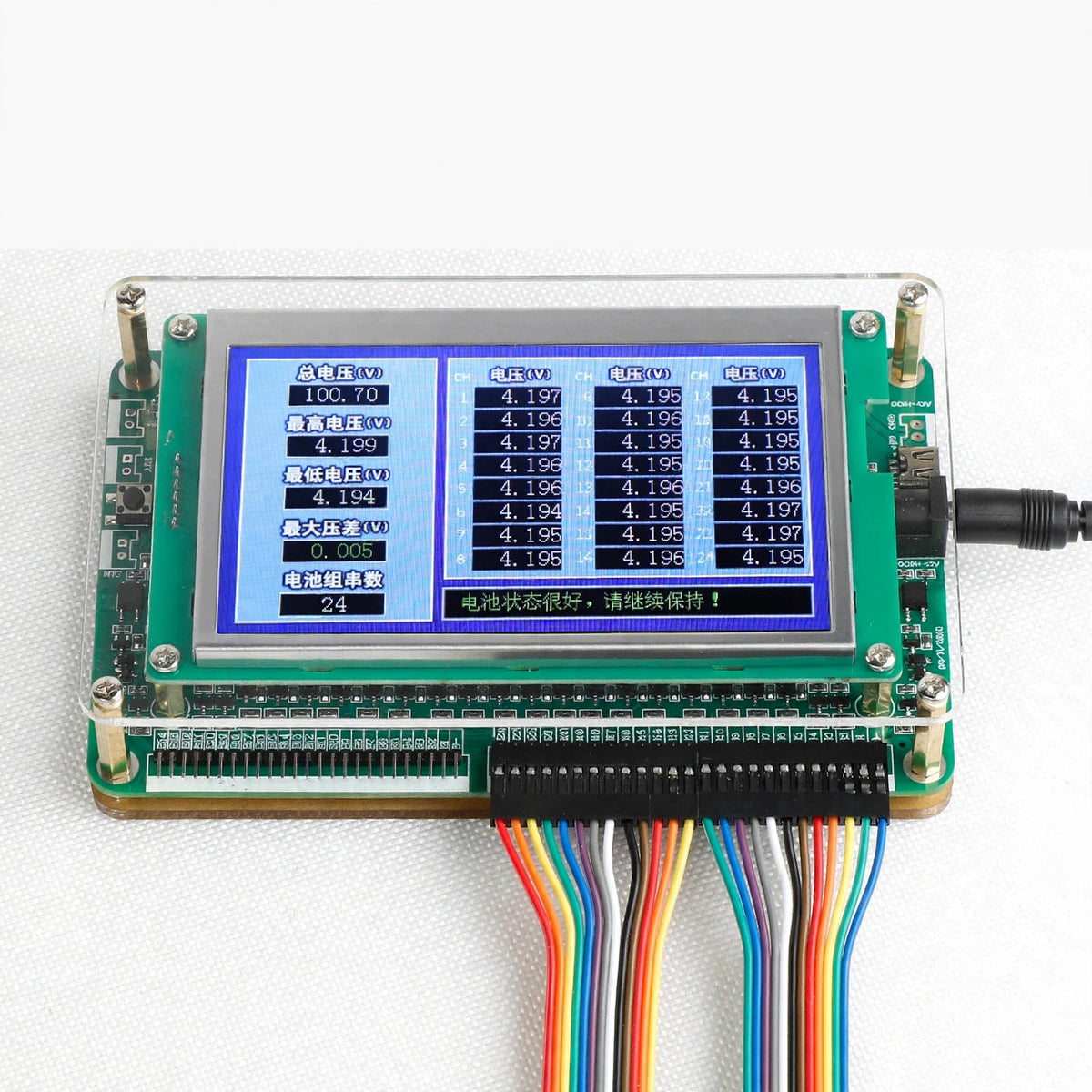

Enerkey 1S-24S Lifepo4 Battery Voltage Tester Lithium ion Single Cell Measurement Identify String Number Lto Volt METER Display

Feature

1. Support negative – voltage display

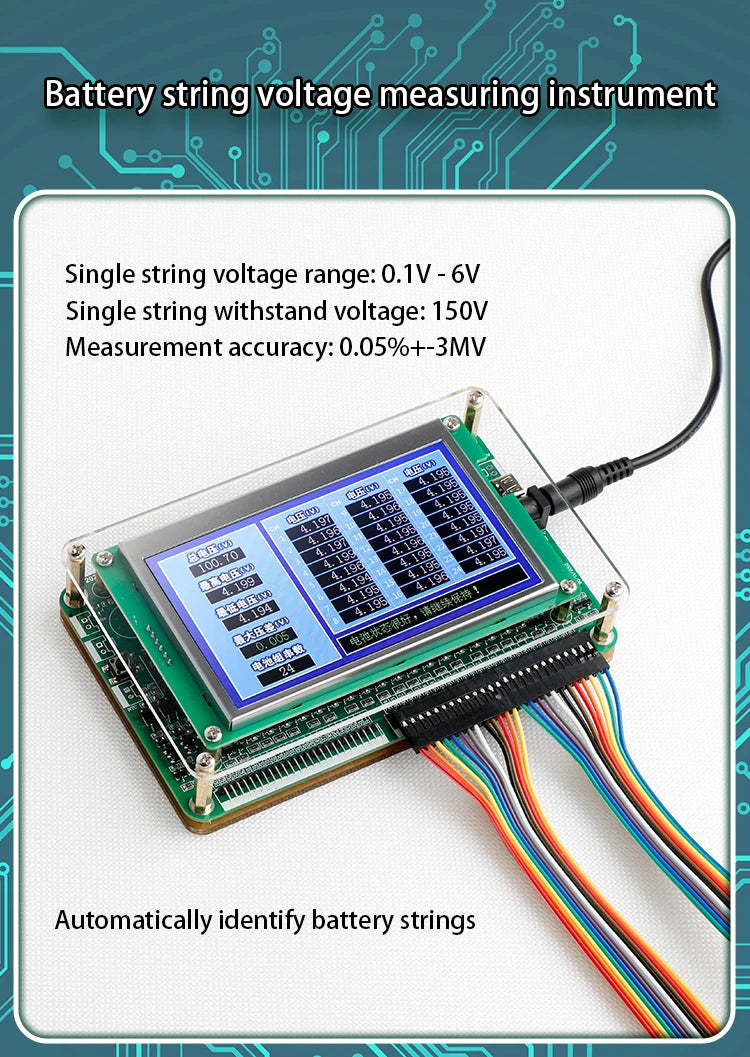

2. Single series range 0.1V-6V

3. Measurement accuracy 0.05%±3MV

4. Support for mixed insertion (without starting with B-)

5. Automatically identify the number of battery series

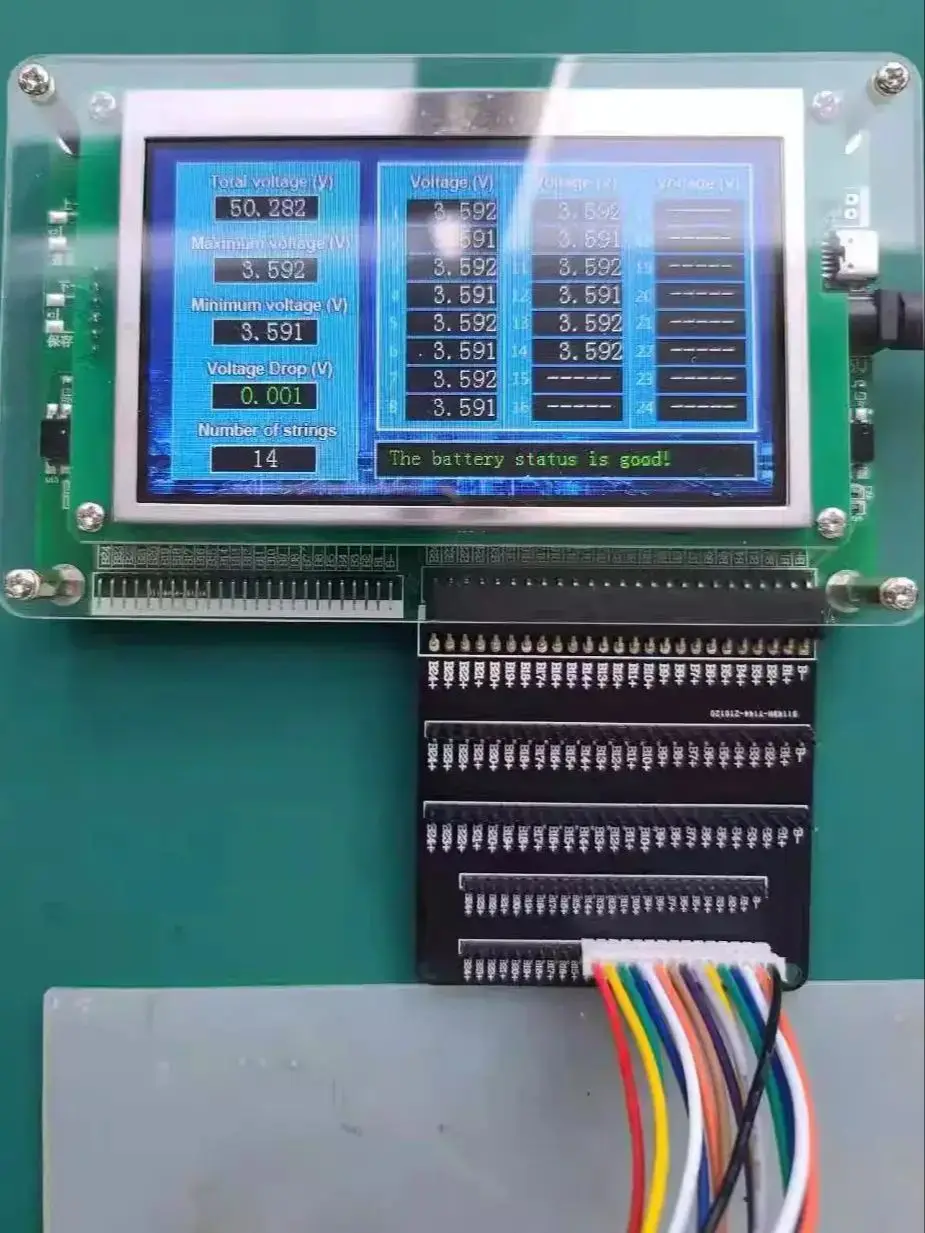

6. Display the highest voltage, the lowest voltage, and the maximum differential voltage between series

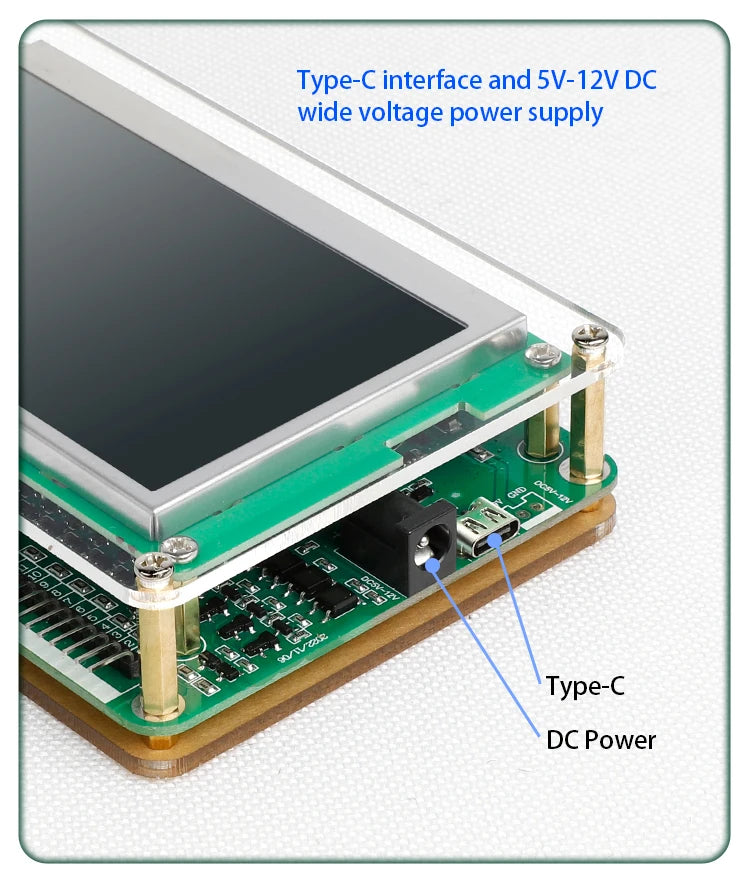

7. TypeC port power supply

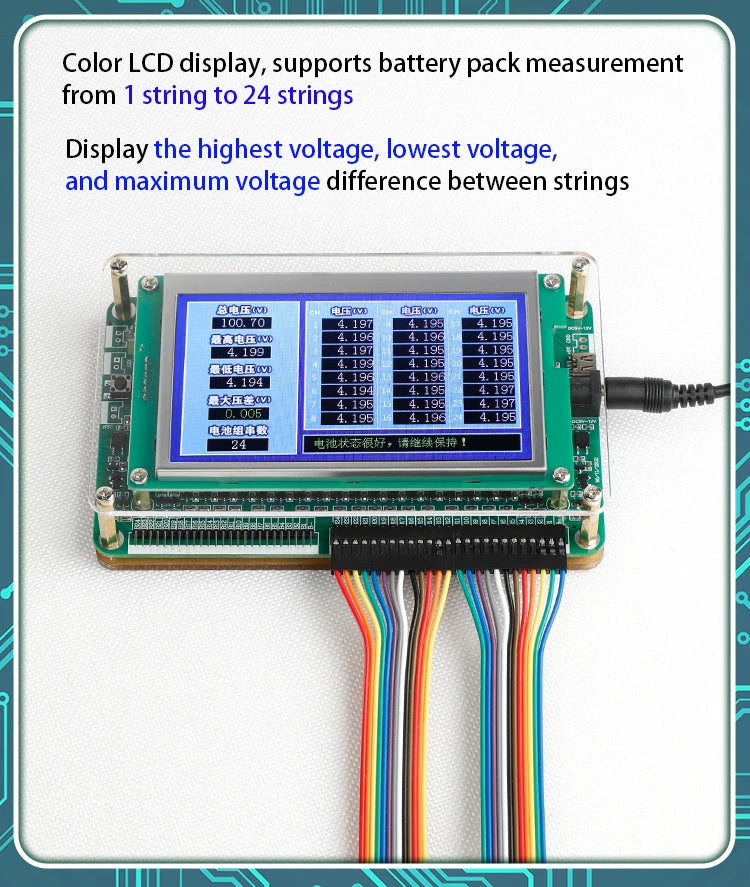

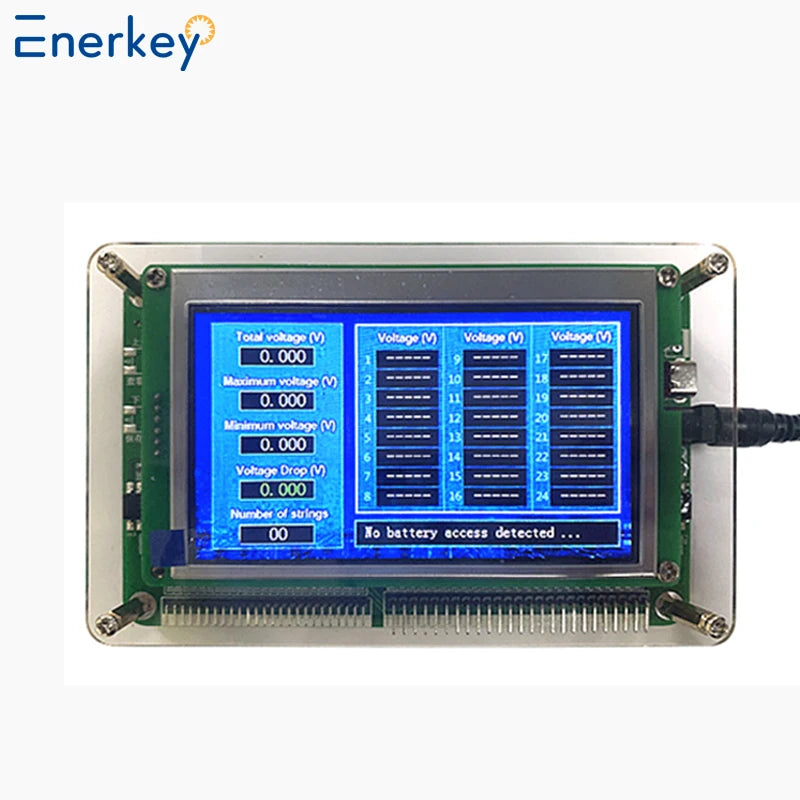

8. Color LCD display with 1S to 24S battery pack measurement

To measure potential-difference, or voltage, a voltmeter must be connected between two points at different potentials. In other words, a voltmeter must always be connected in parallel with the part of the circuit under test.

Voltage measuring instrument display measurements as a number and offer the most reliable readings.

Product Description

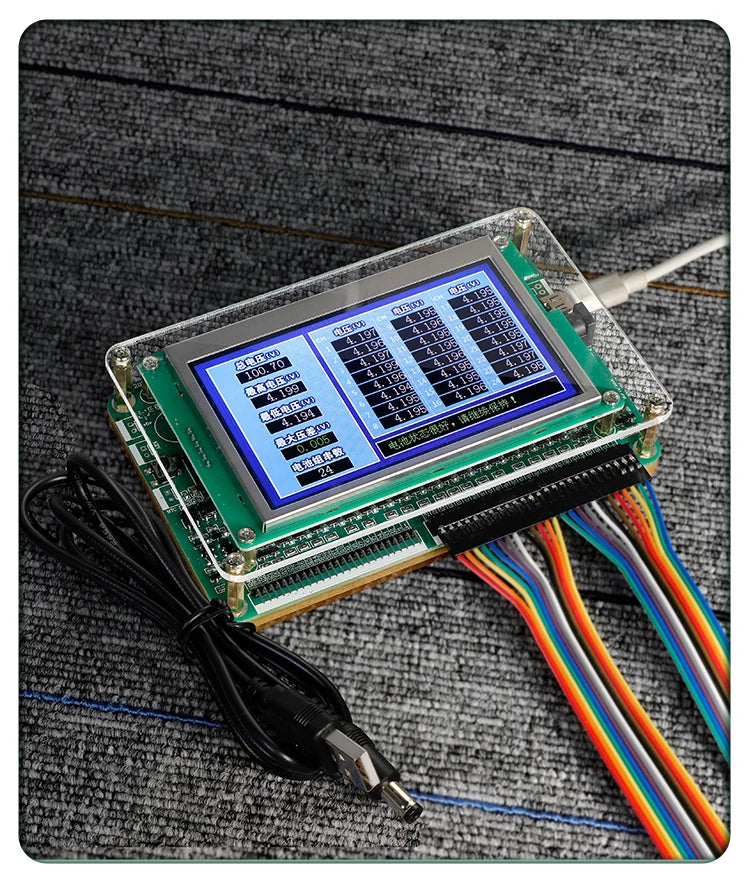

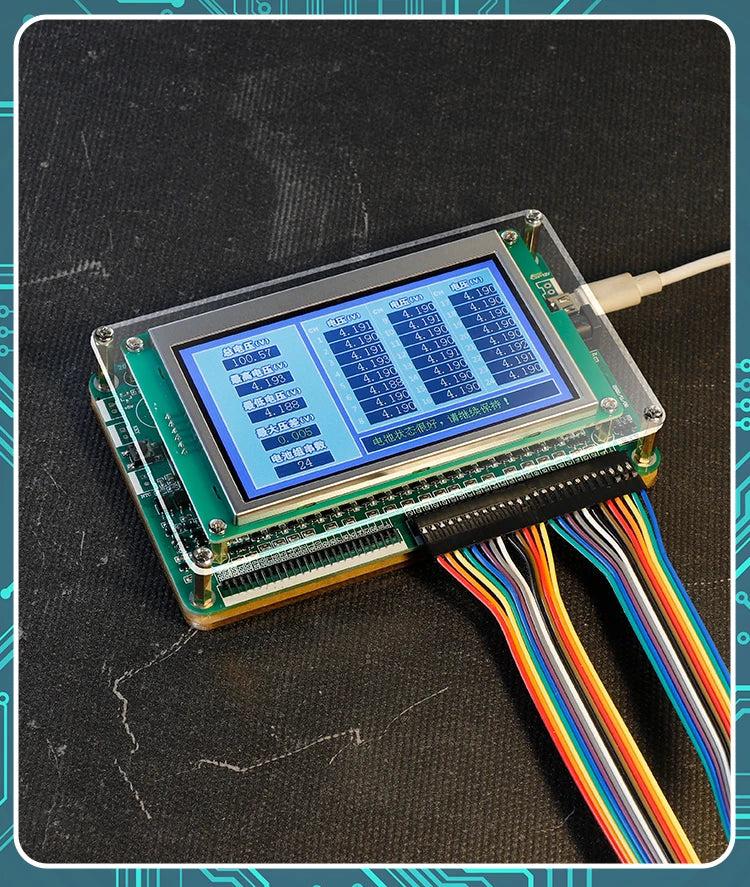

Li-Ion Lifepo4 Battery Repair Machine 1-24s Battery String Voltage Measurement Instrument

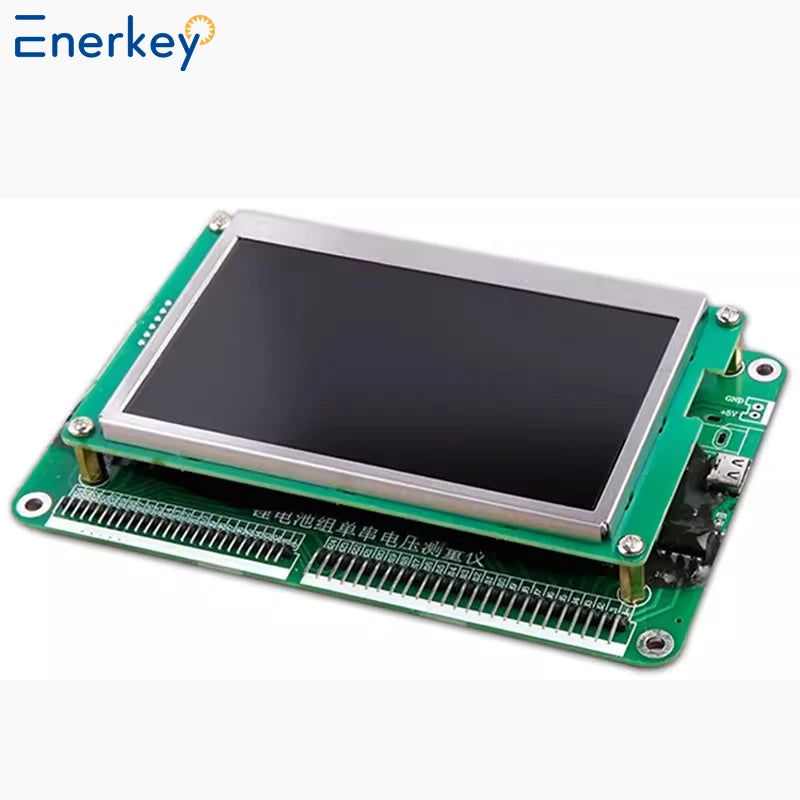

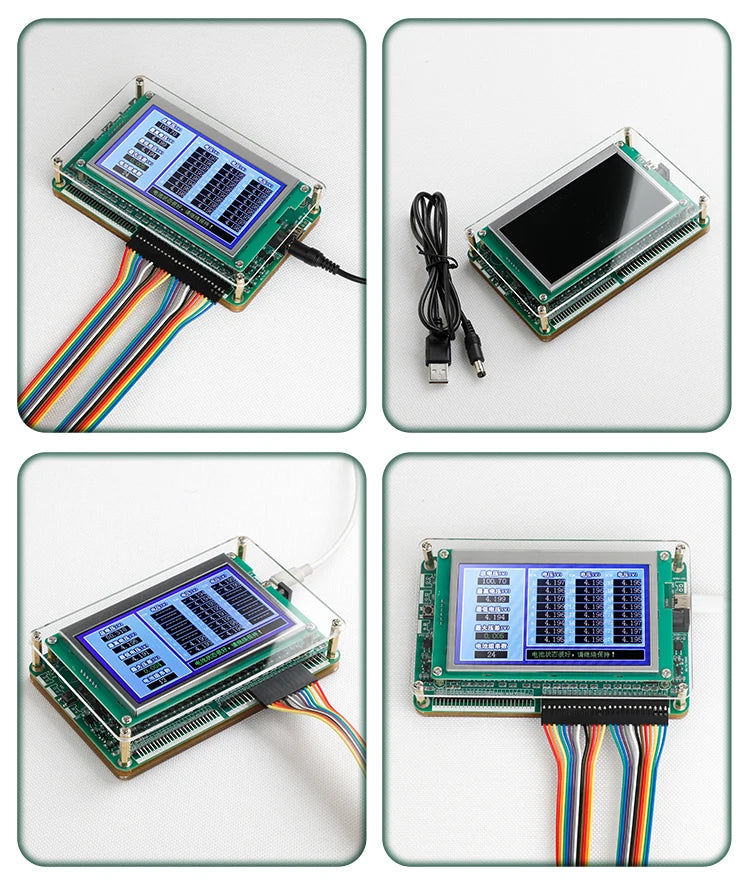

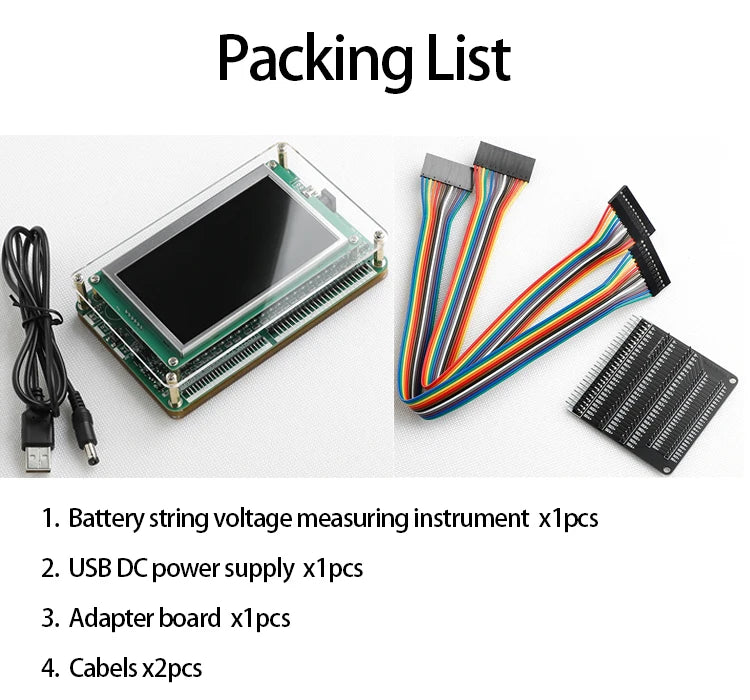

Product photo and Packing list for EK-SA-B24S9A / EK-SA-B24S25A

（!!!!Note: Please buy the adapter board and cables together)

Dimensions: l 140 * w 87mm

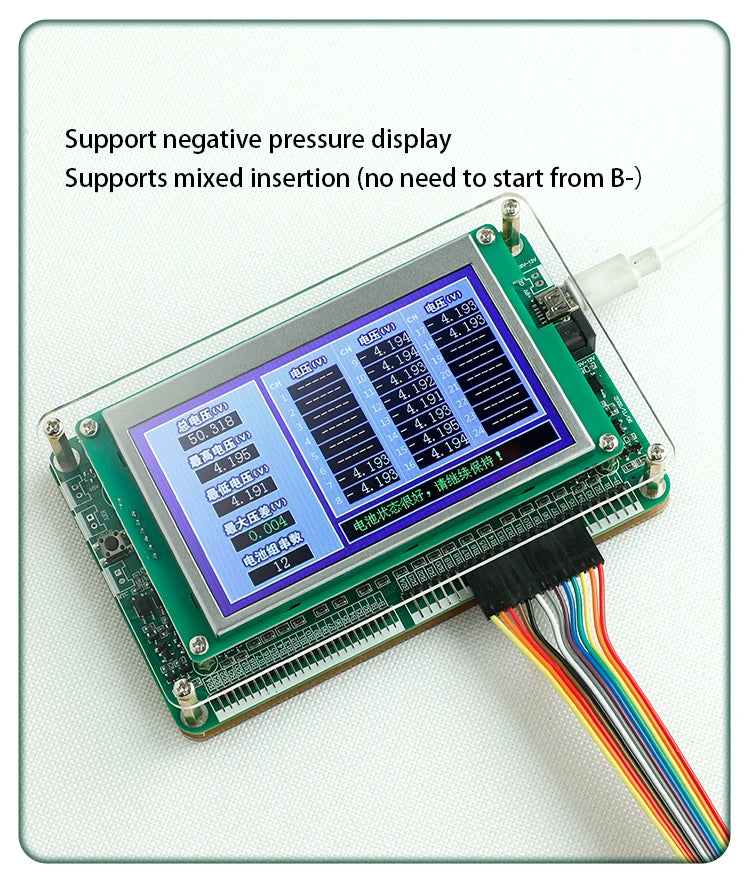

1. Support negative pressure display

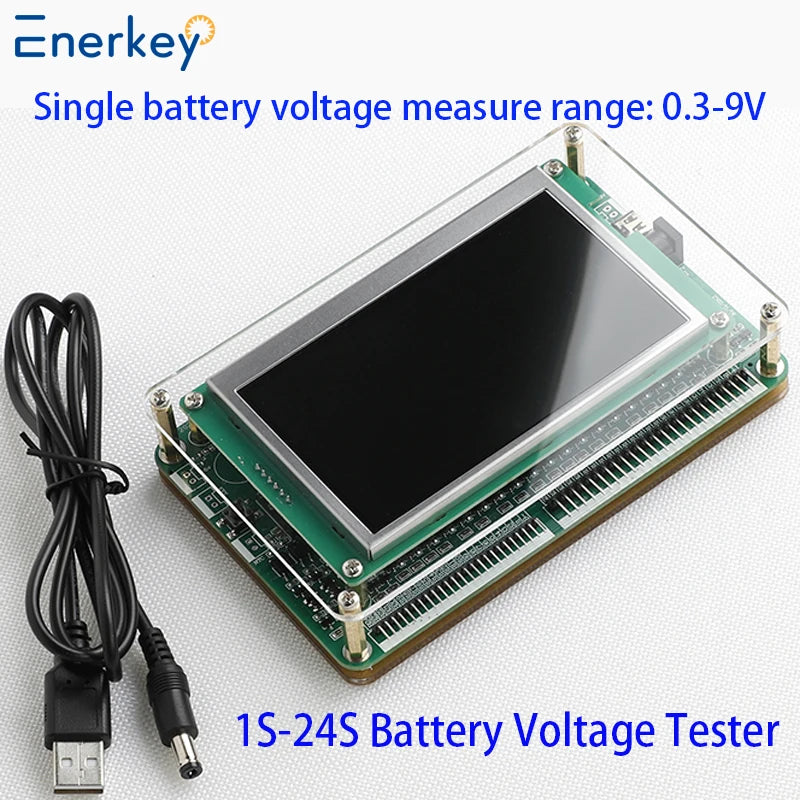

2. Single series range 0.3V ~ 9V or 0.3V ~ 25V(Option)

3. Measurement accuracy 0.05% + - 3MV

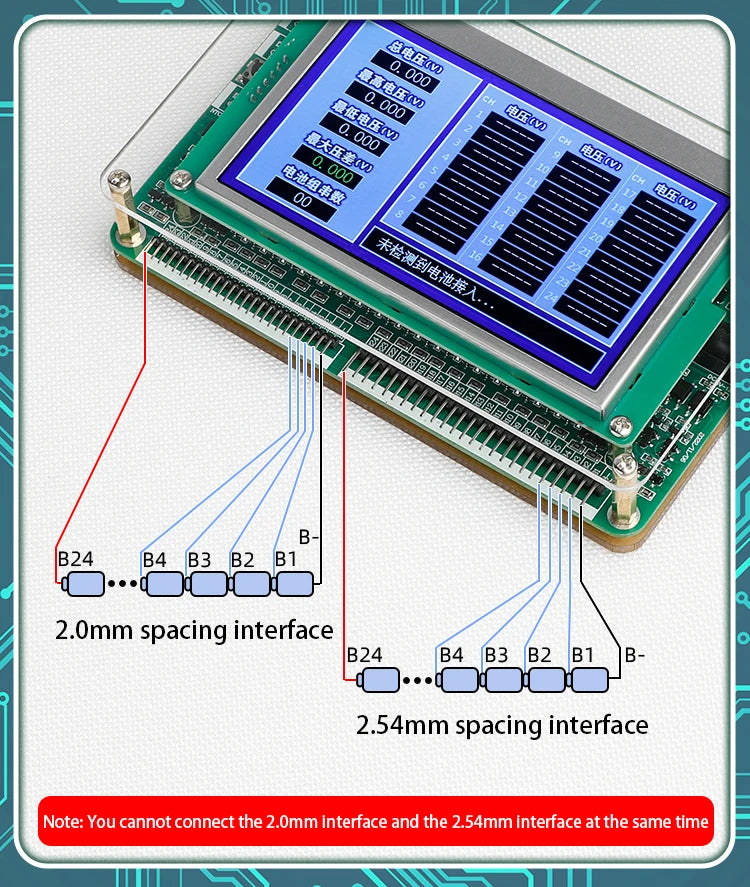

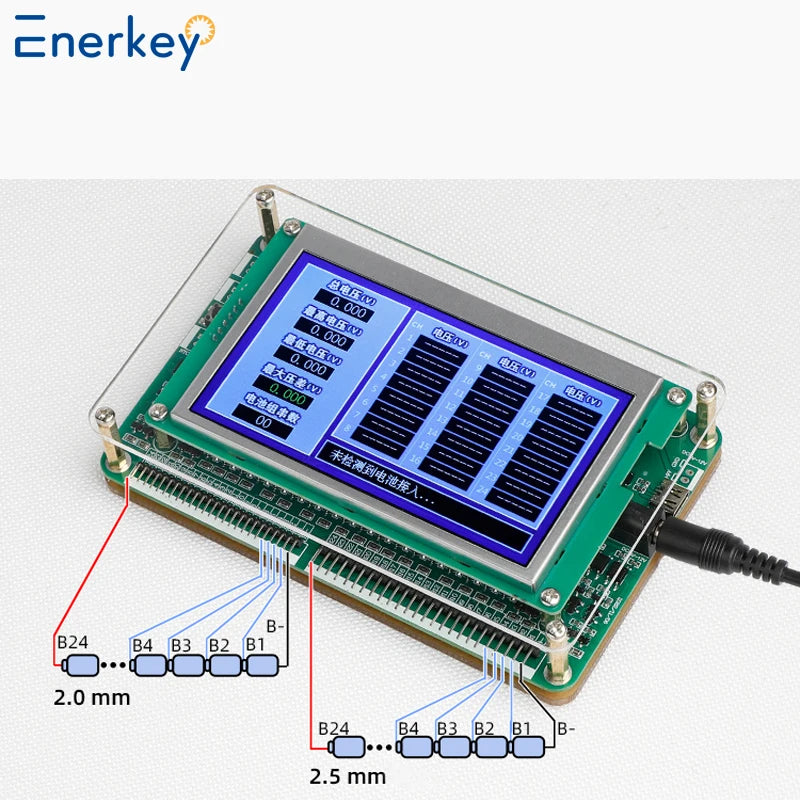

4. Supports mixed insertion (not starting from B -)

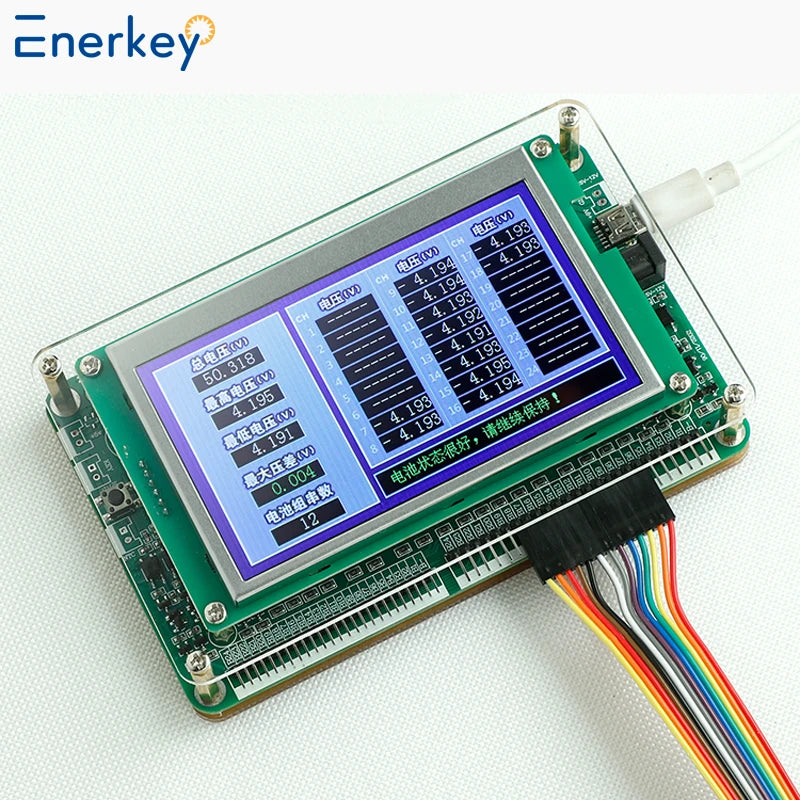

5. Automatic identification of battery string number

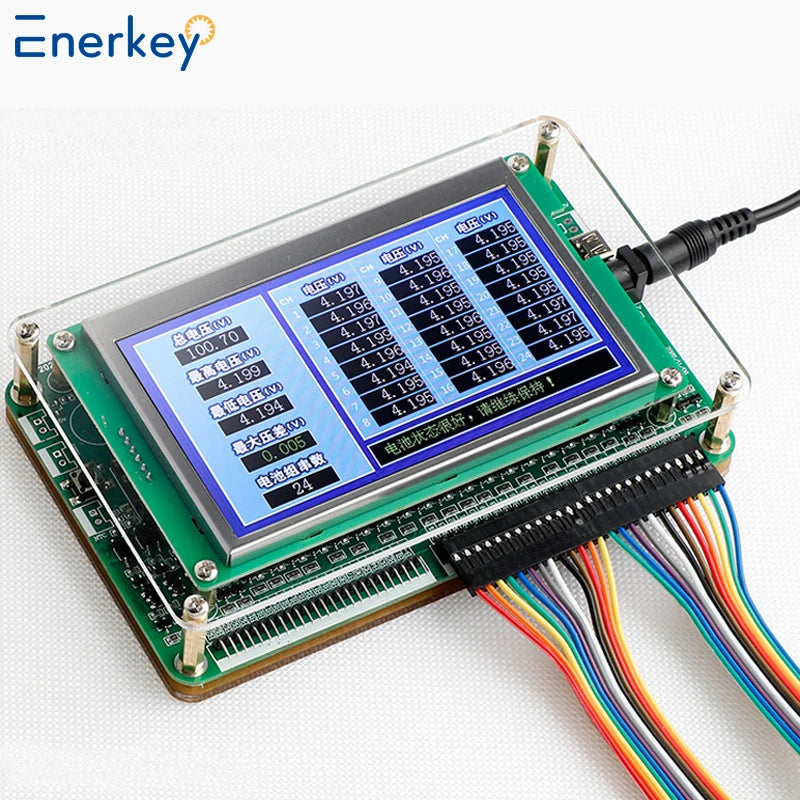

6. The maximum voltage, minimum voltage and maximum voltage difference between the strings are displayed

7. Type C port power supply

8. Color LCD display, support 1 to 24 strings of battery measurement The test extension board that needs to be matched with the main tester can be purchased by clicking the link below
