SPECIFICATIONS

Accessory Type: Battery Accessories

Application: for 13S 18650 Lithium Battery Pack DIY use

Battery Included: No

Bms Model: 13S 48V 25A E-bike Battery BMS

Brand Name: Turmera

Certification: CE,FCC,RoHS,UL,KC

Charger included: N

Charging Voltage: 54.6V

Continues Discharge Current: 13S 48V 25A E-bike Battery BMS

Feature 1: 48V E-bike Battery BMS

Feature 2: 48V 25A E-bike battery BMS

Feature 3: 52V 25A Lithium Battery BMS

Feature 4: 13S 25A Lithium Battery BMS

Feature 5: 48V 18650 25A Lithium Battery BMS

Feature 6: 48V 25A Lithium Battery BMS

High-concerned chemical: None

Model Number: 13S 48V 25A E-bike Battery BMS

Origin: Mainland China

Rate Voltage: 48V

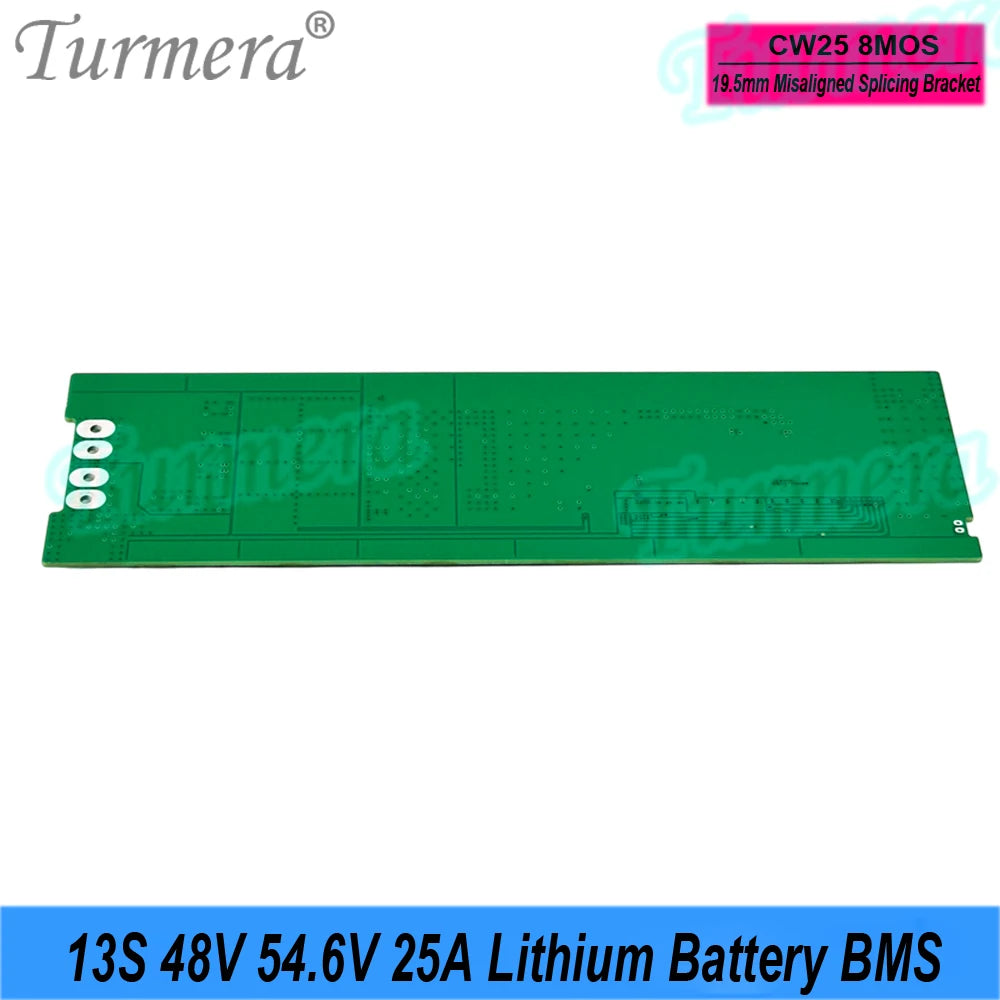

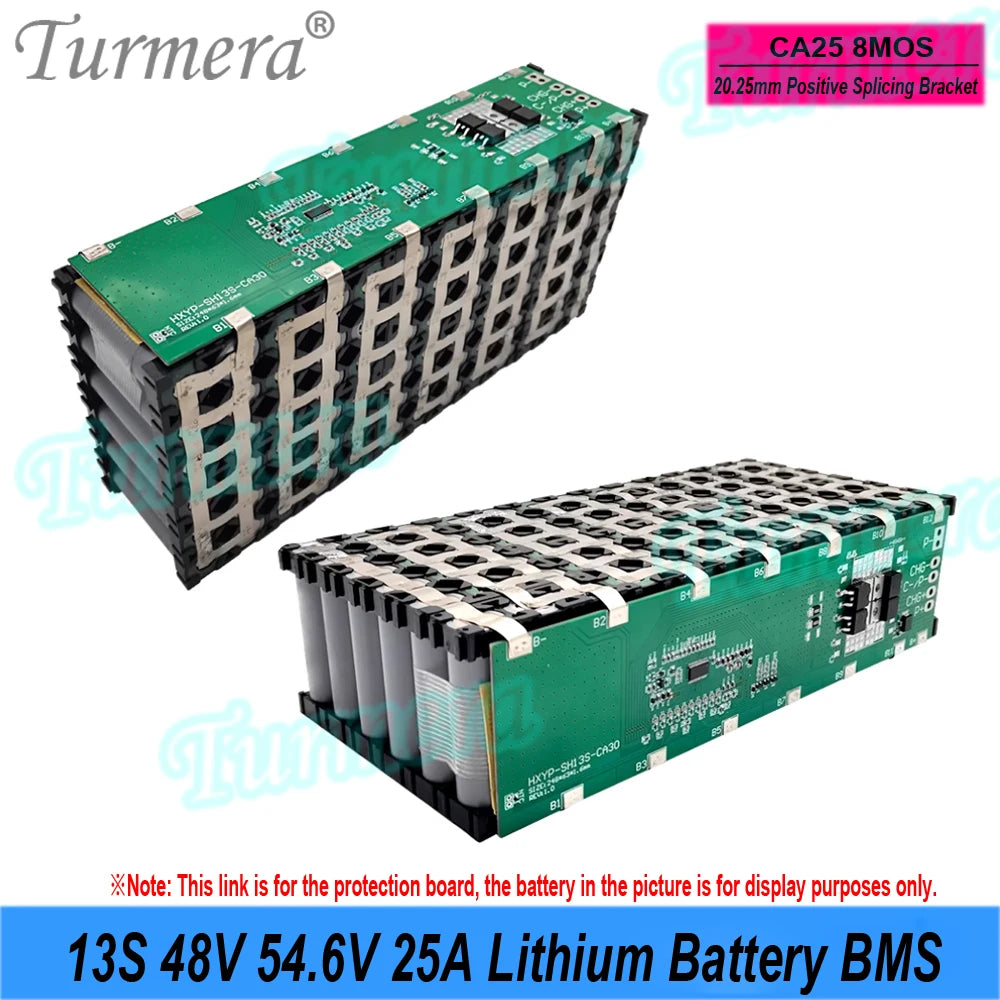

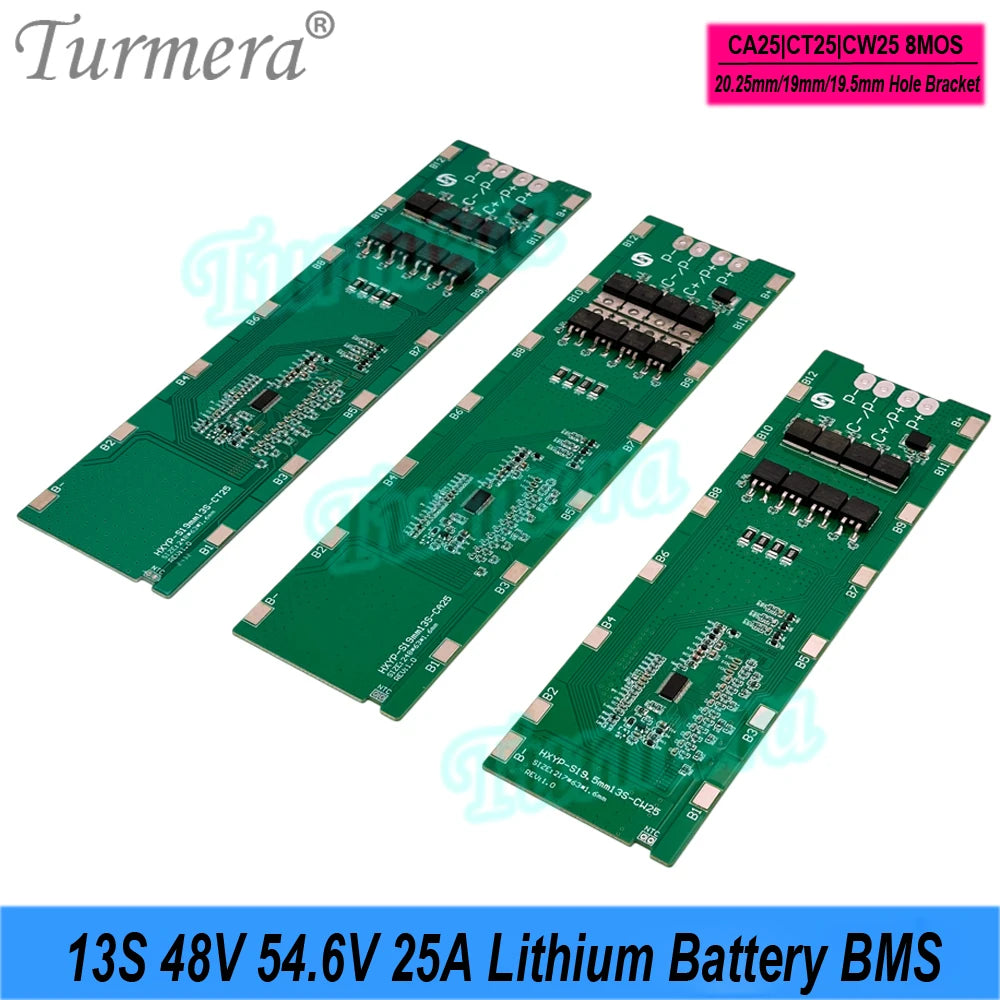

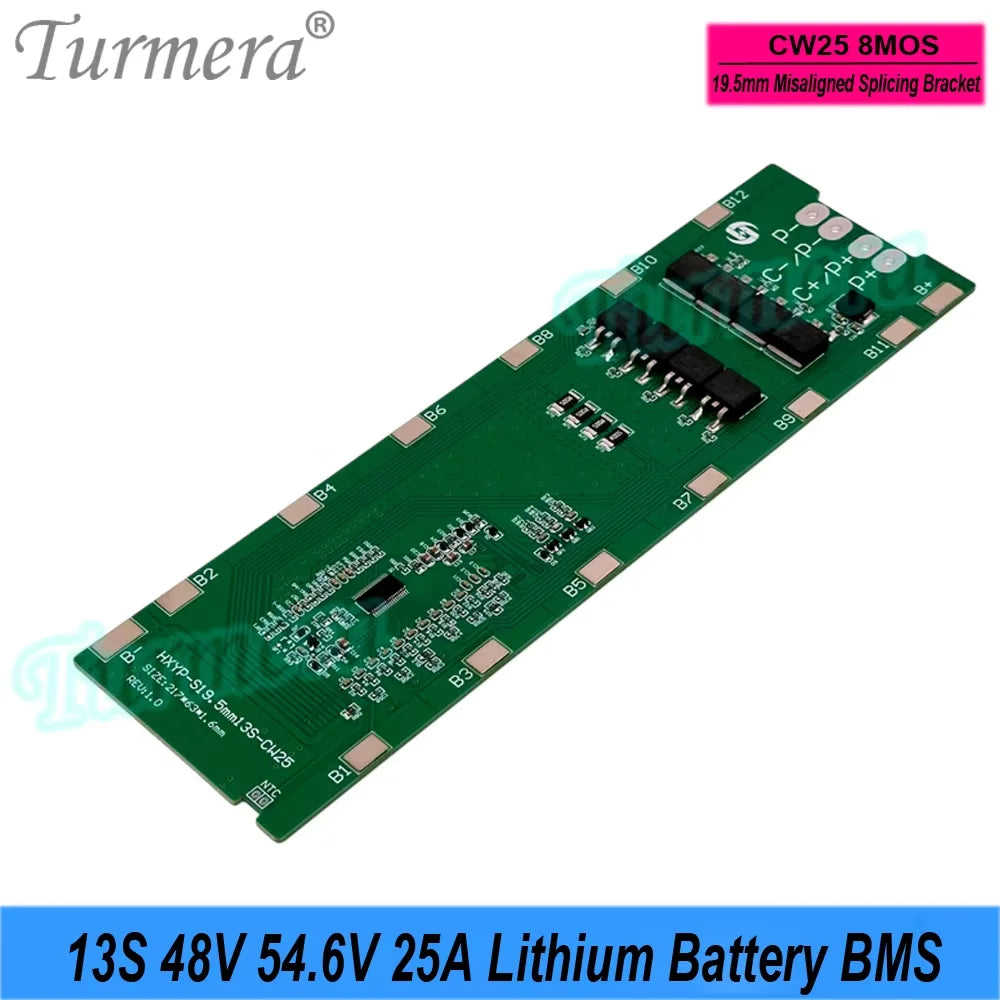

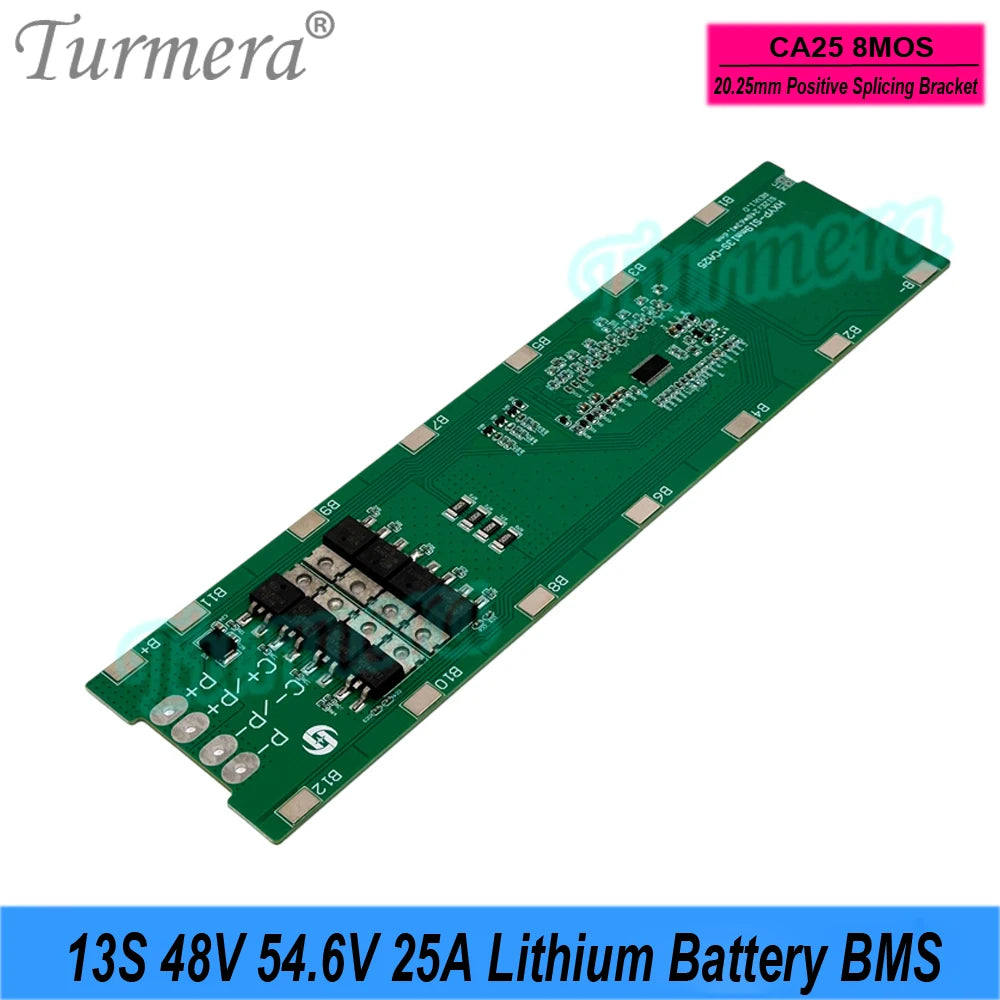

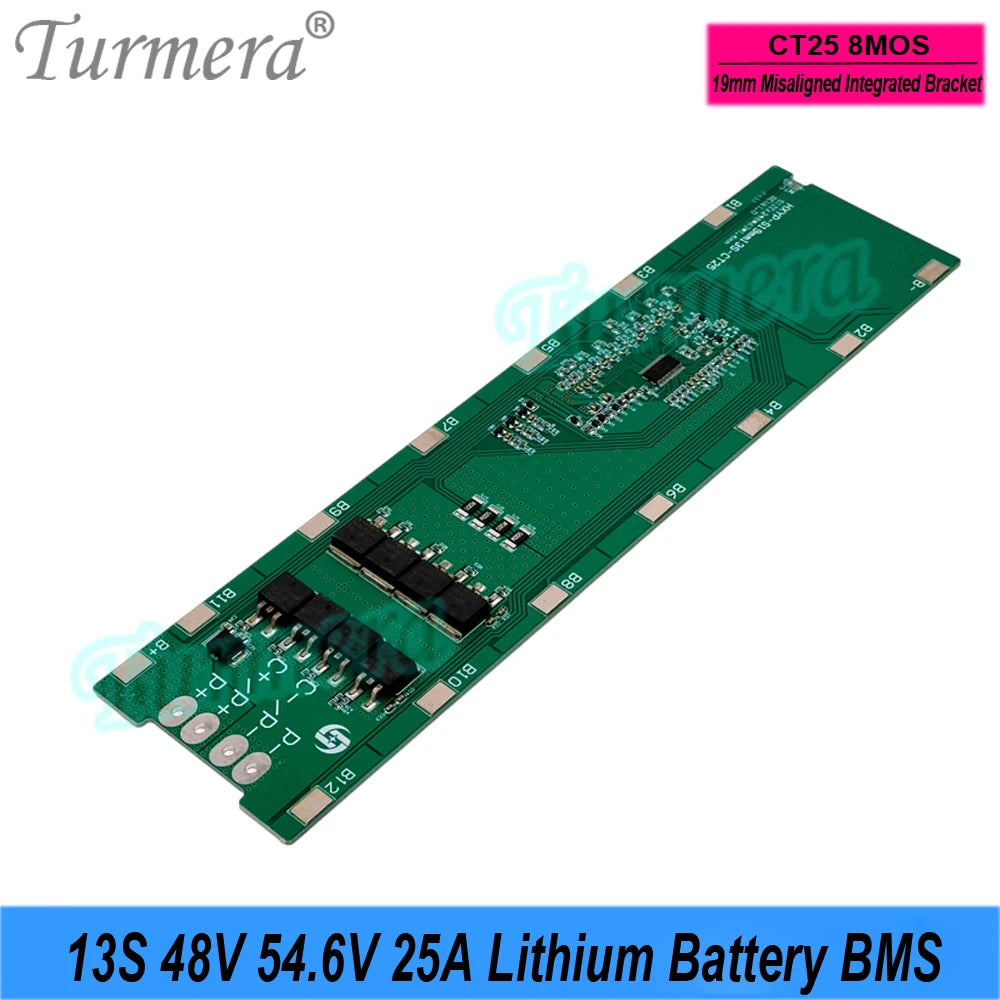

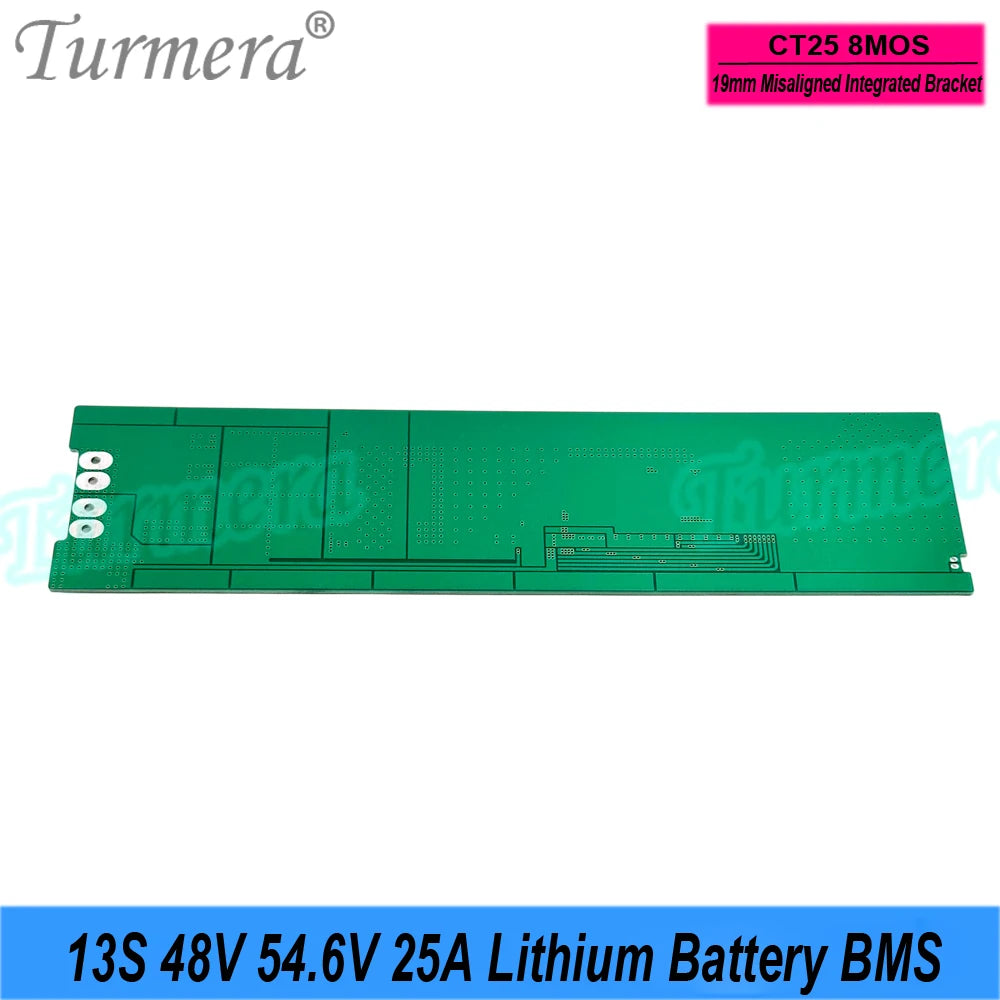

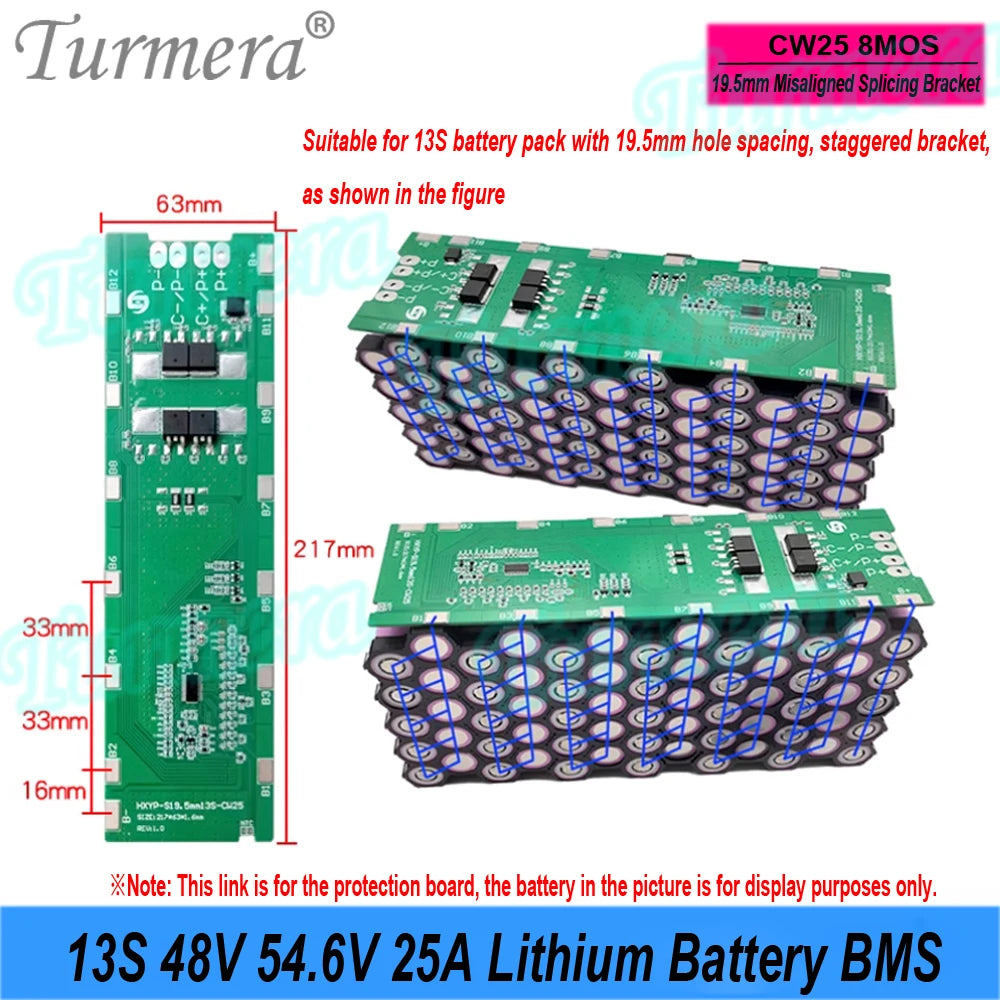

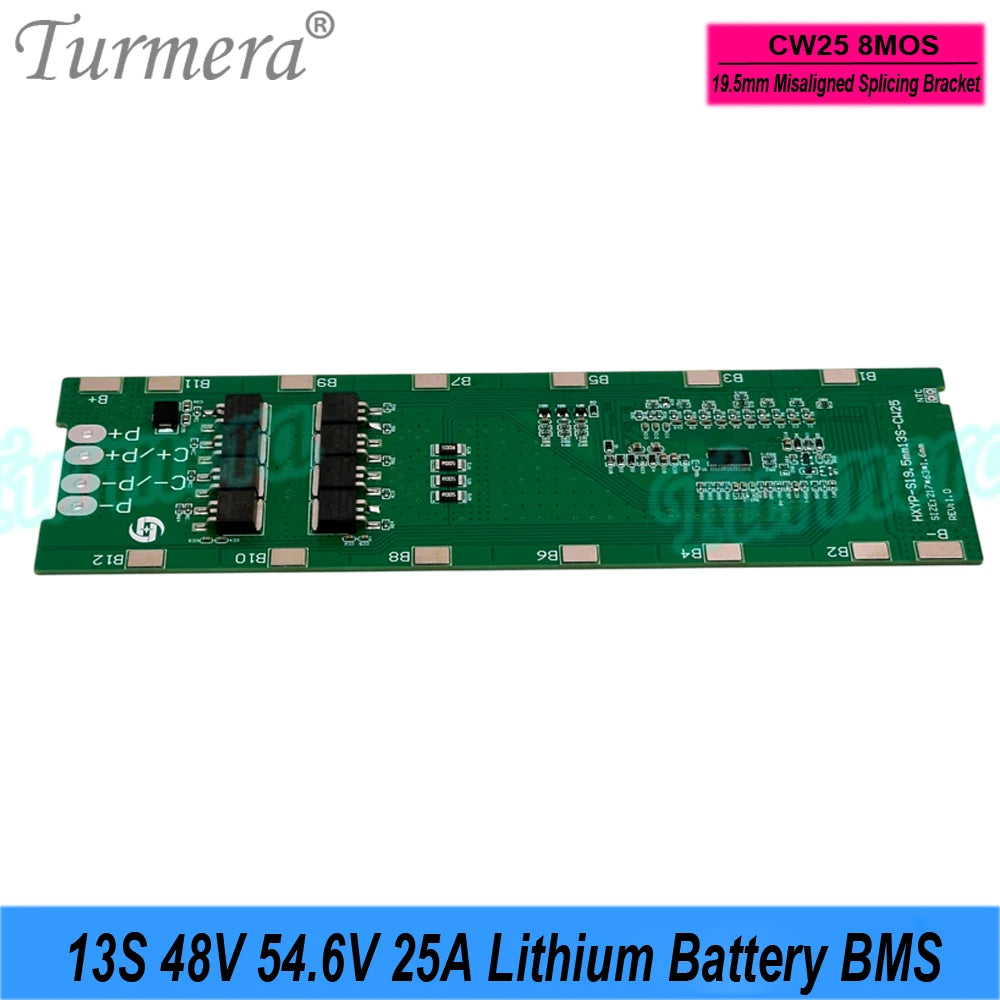

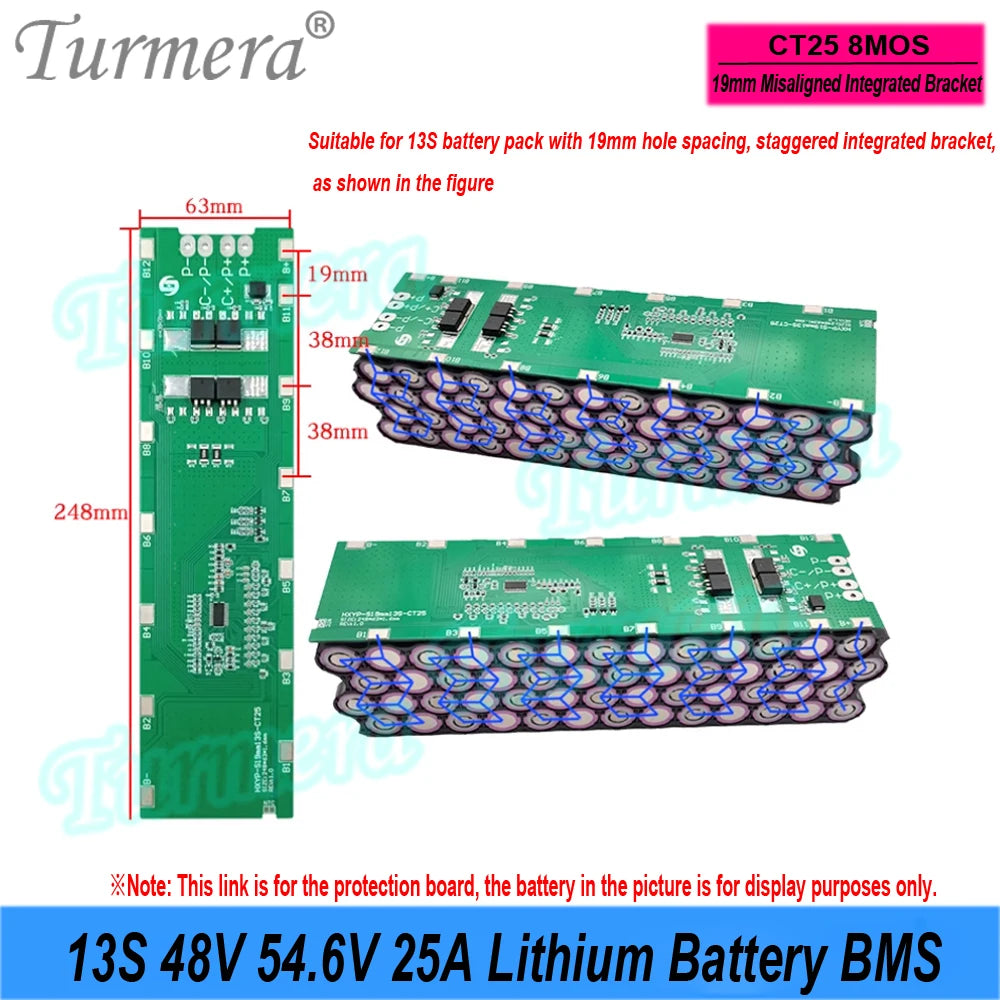

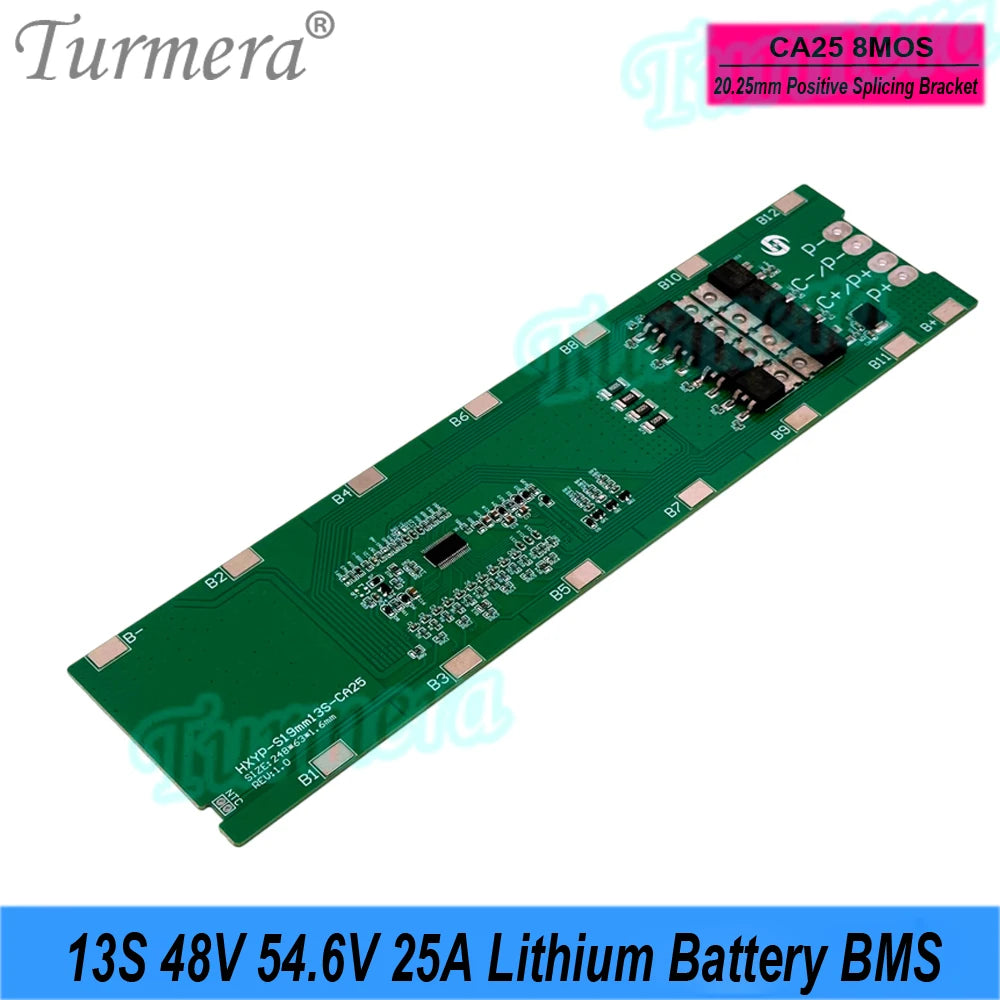

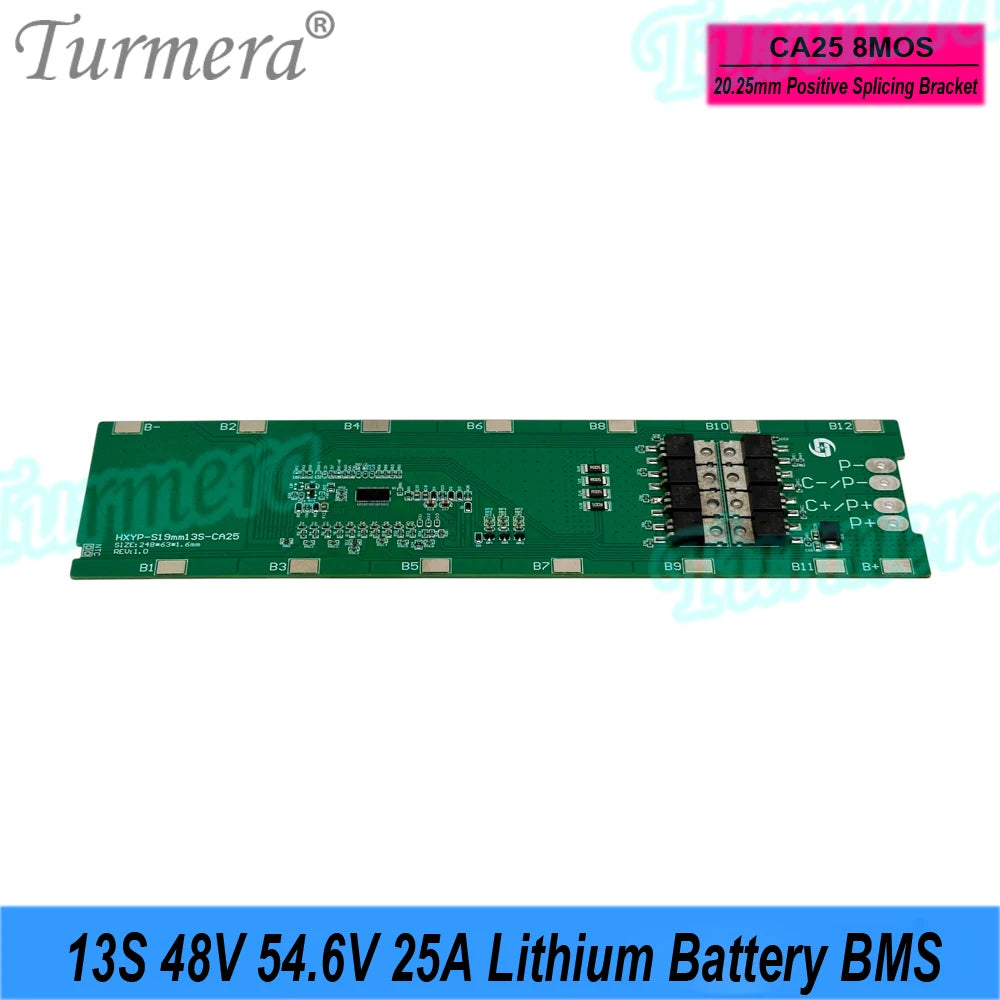

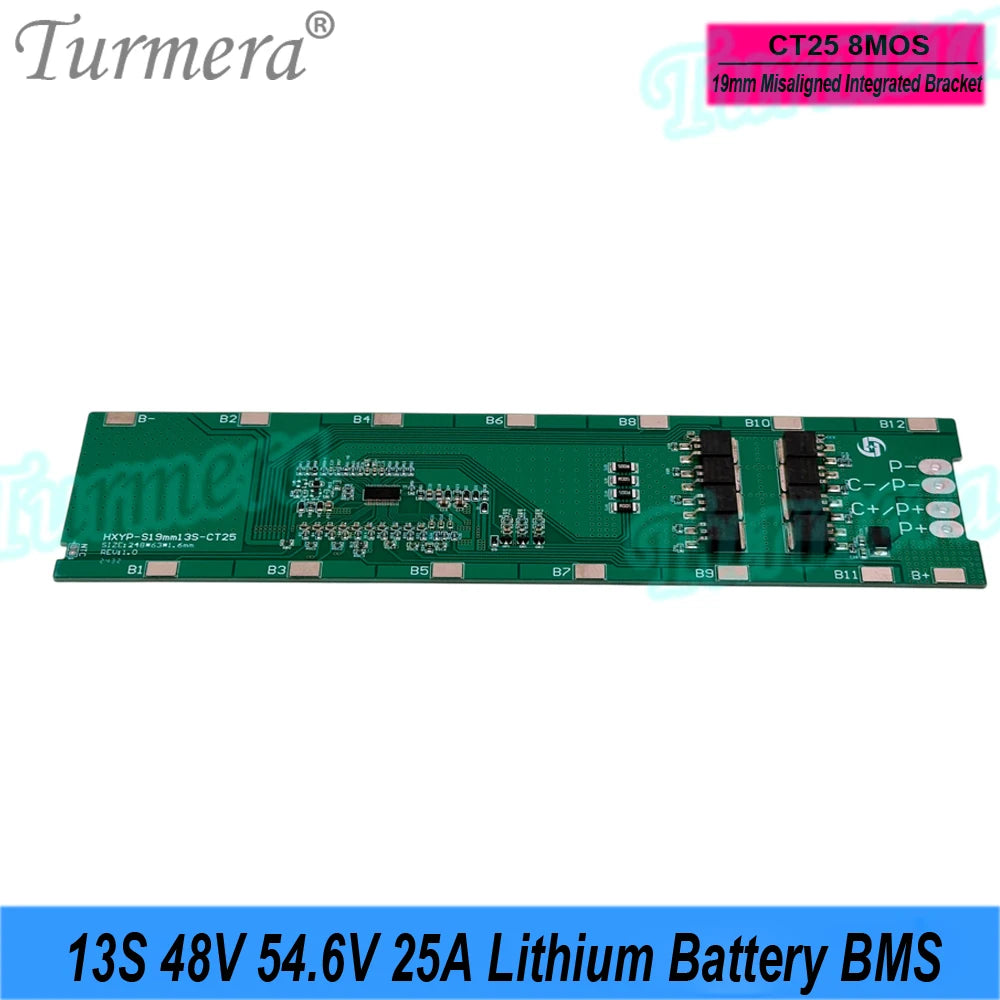

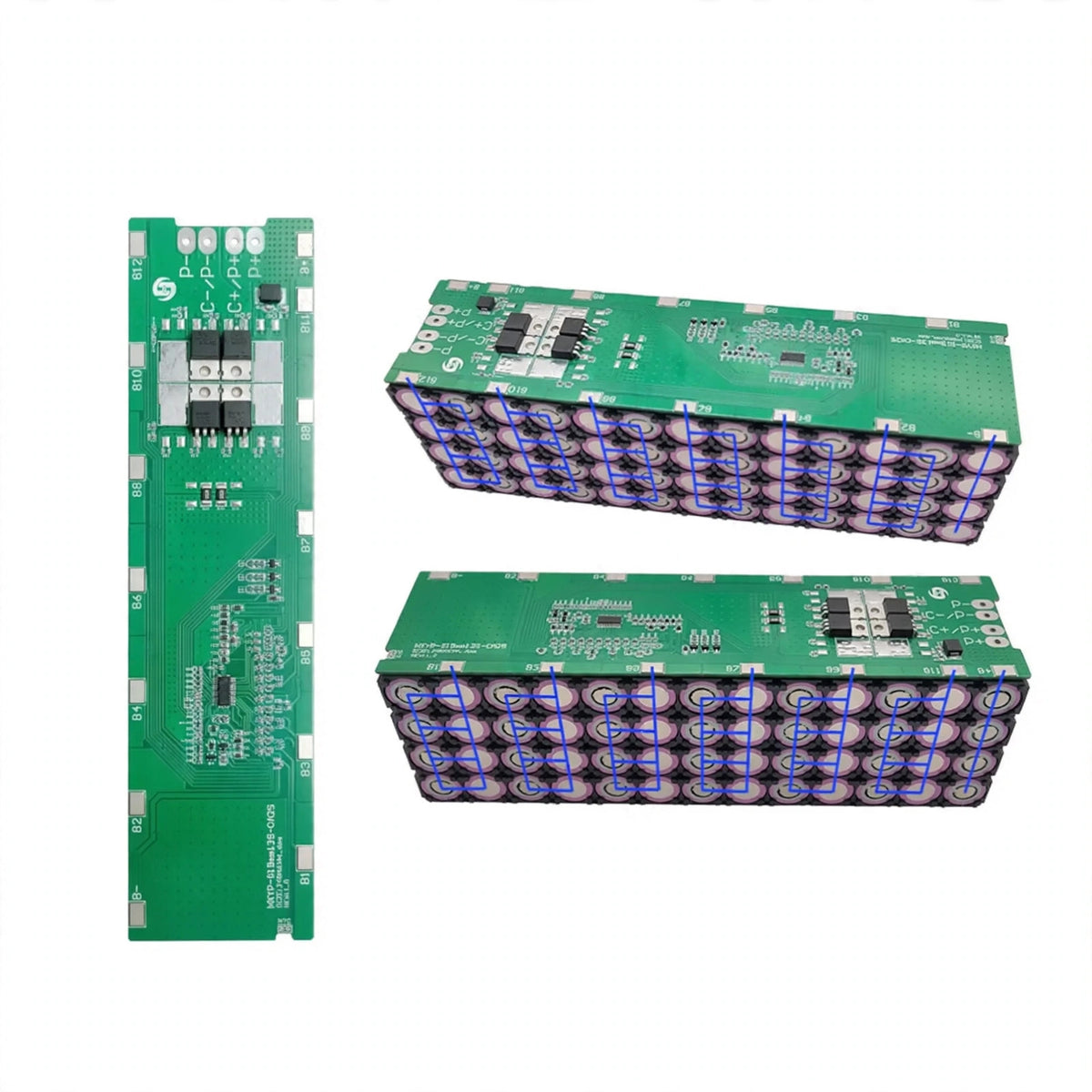

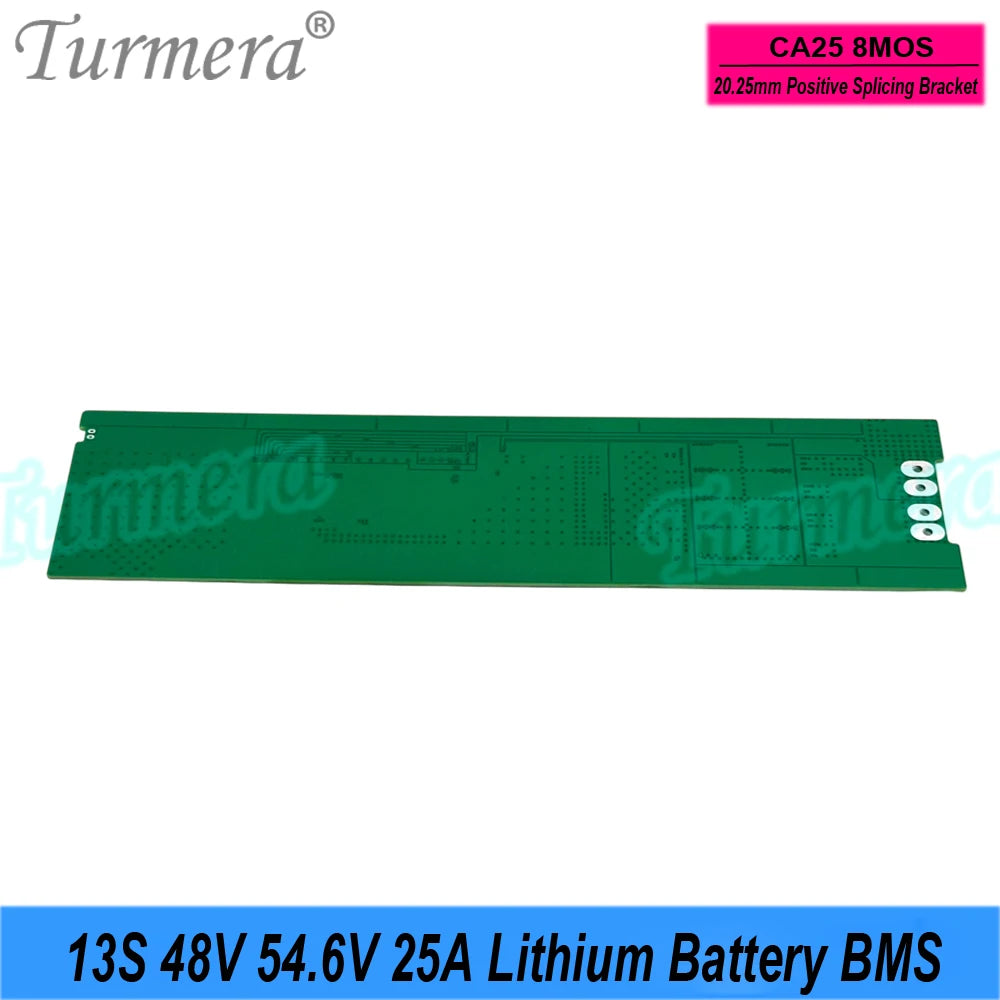

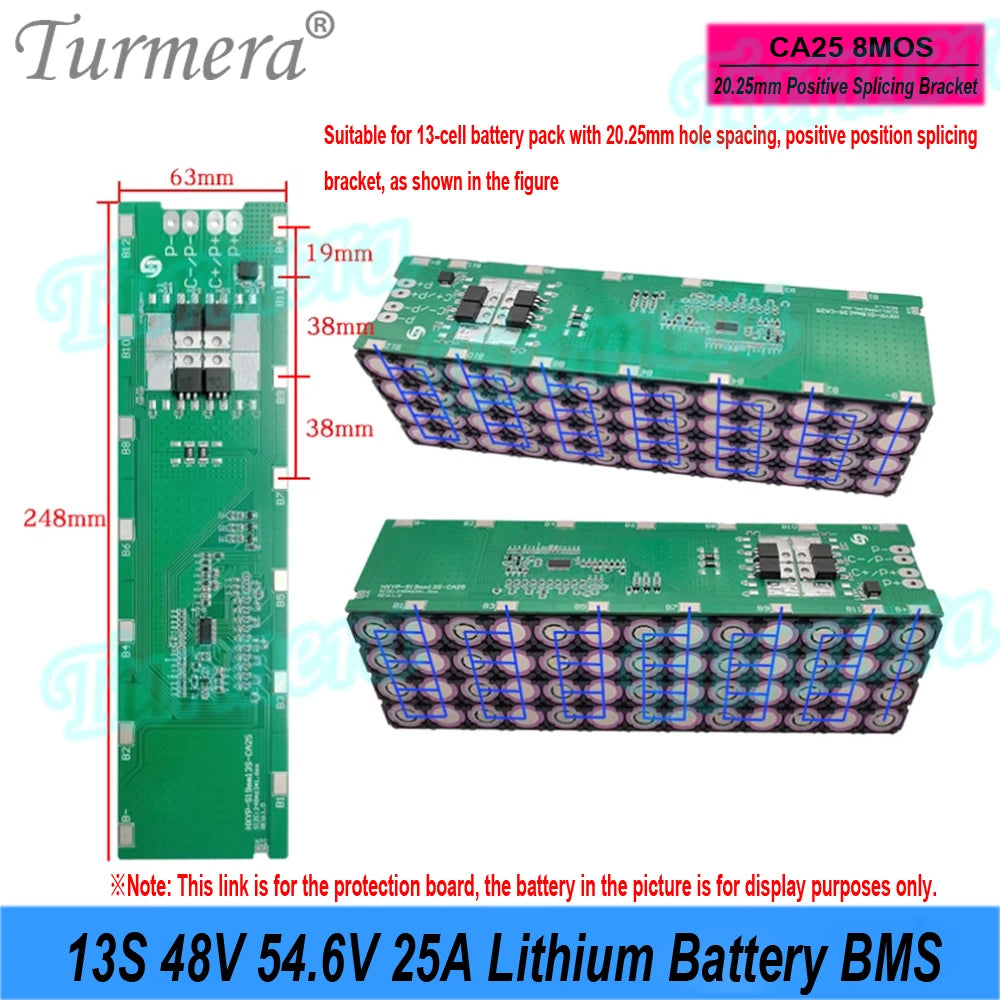

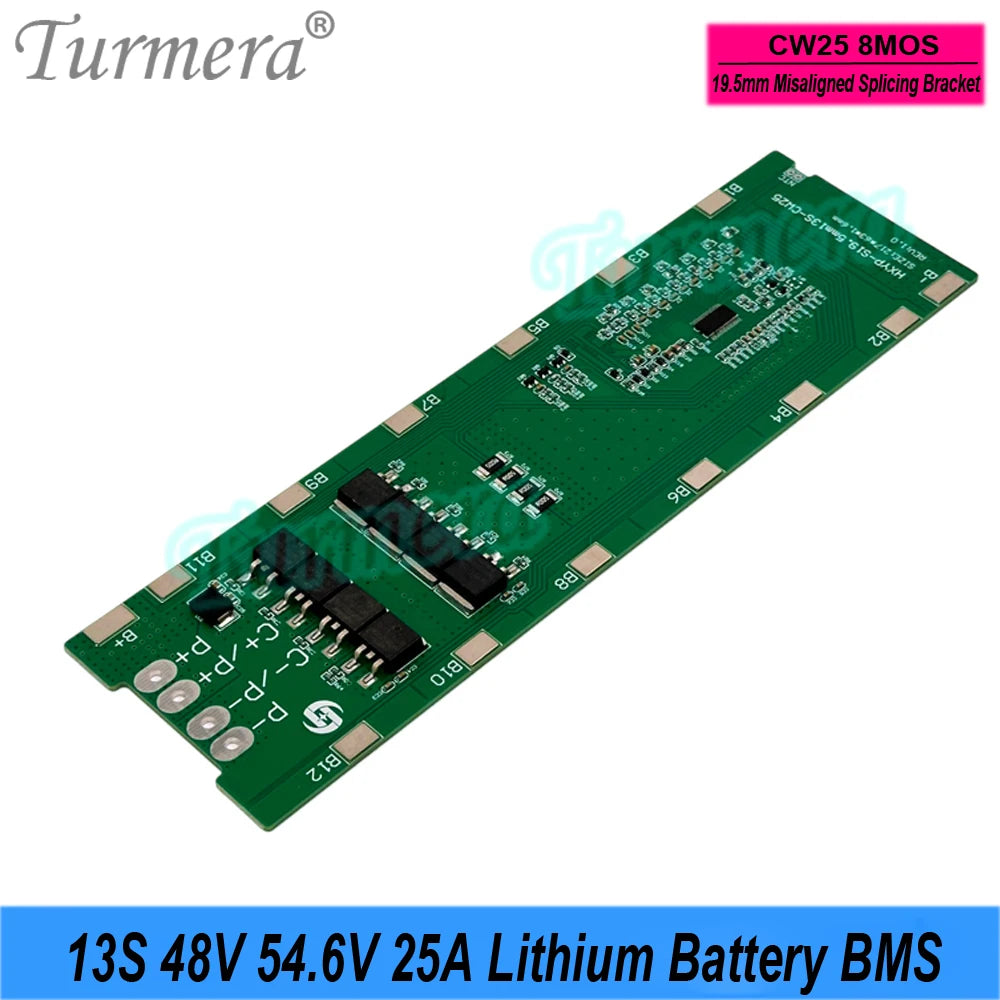

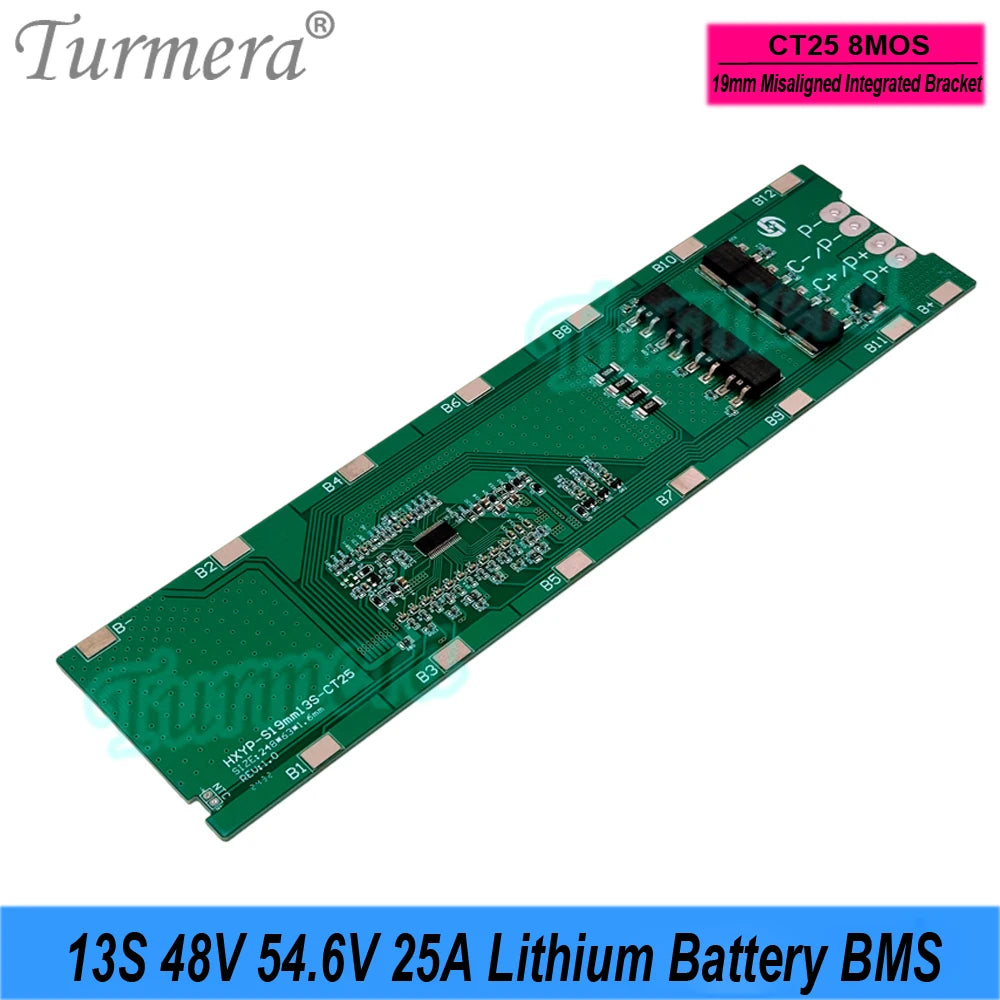

Turmera 13S 48V 54.6V 25A Lithium Battery BMS Welding Board for 18650 13S4P 13S5P 13S6P 13S8P E-Bike E-scooter Battery Pack Use

Product Description:

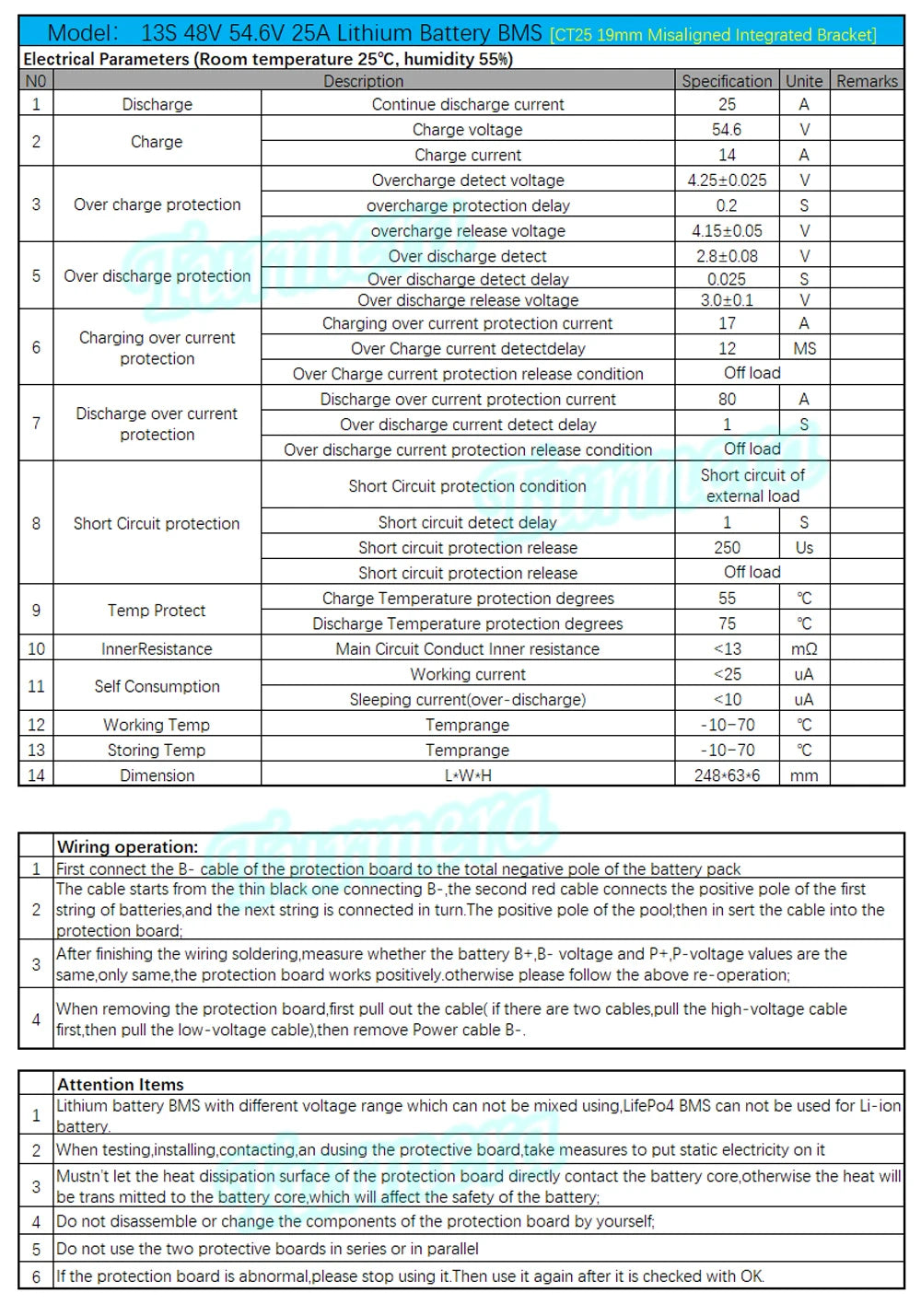

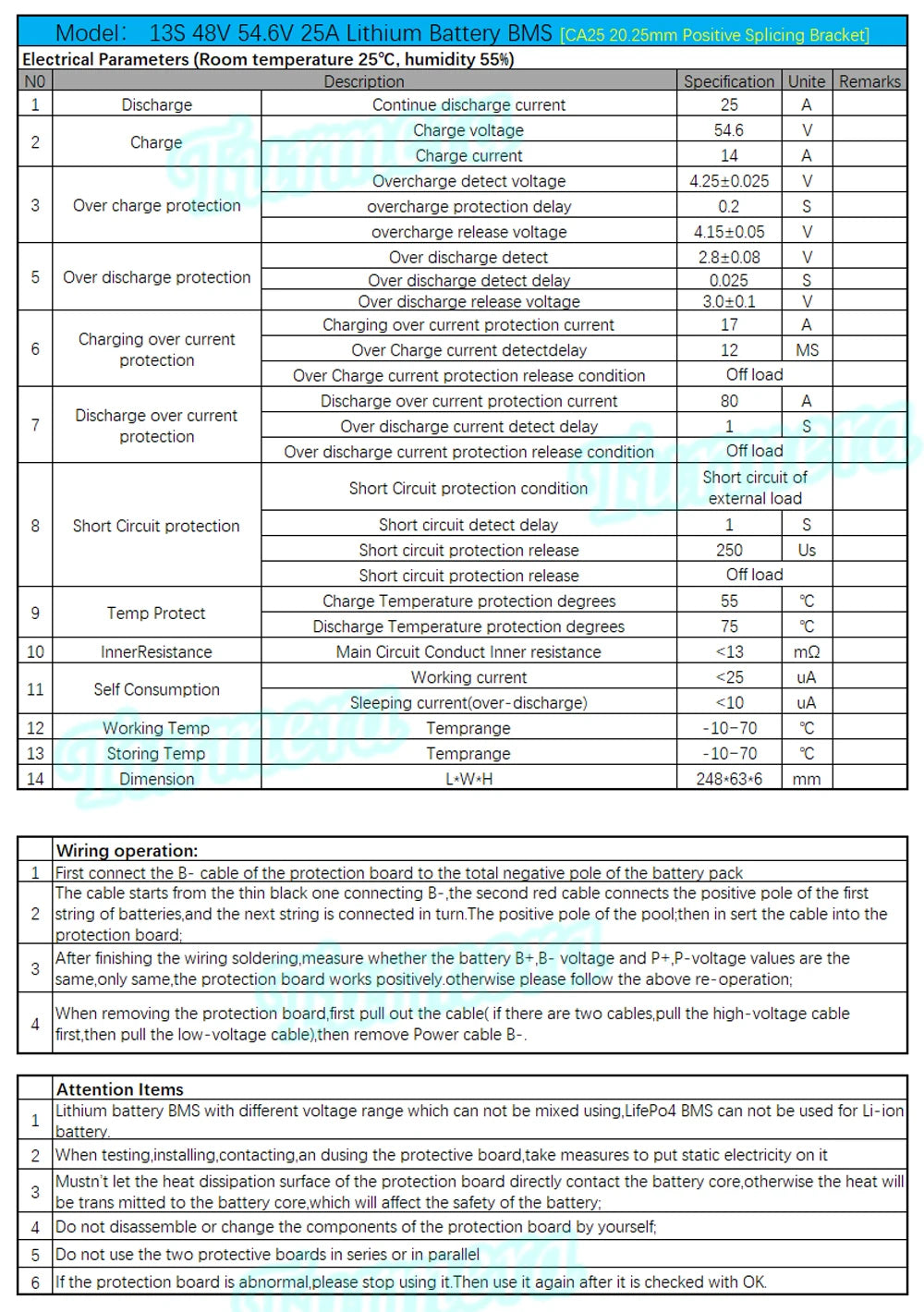

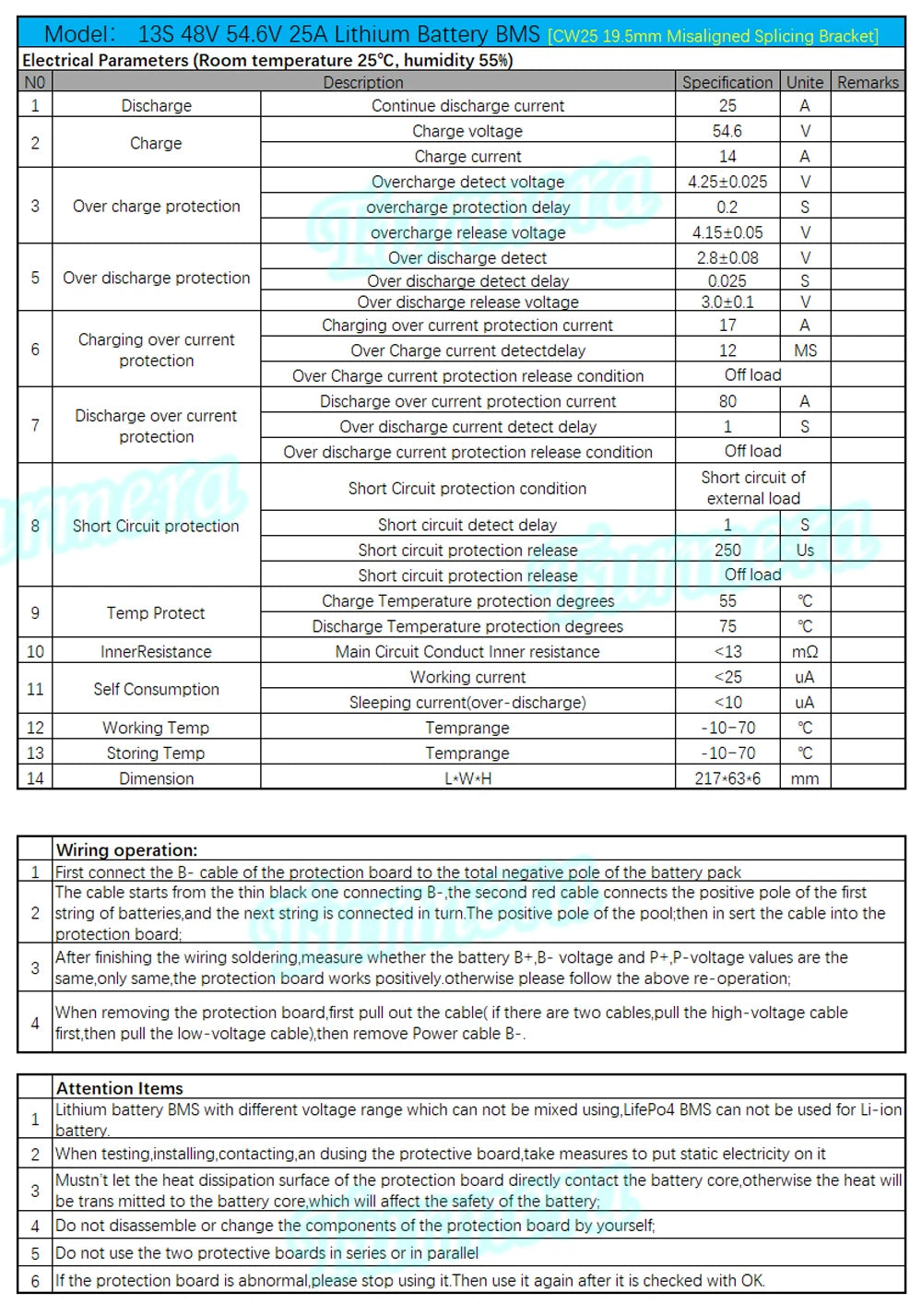

13S 48V 54.6V 25A Lithium Battery Protection Board

BMS Scope:Nominal voltage of 3.7 Lifepo4 battery (including 18650,26650, 21700 )

Charging voltage:54.6V

Continuous discharge current (upper limit): 25A(if the cooling environment is not good, pleasereduce the load current use)

Packing List:Shipping by choose different bundle.

Notice:

only the BMS,Lithium Battery and Bracket Not Including!

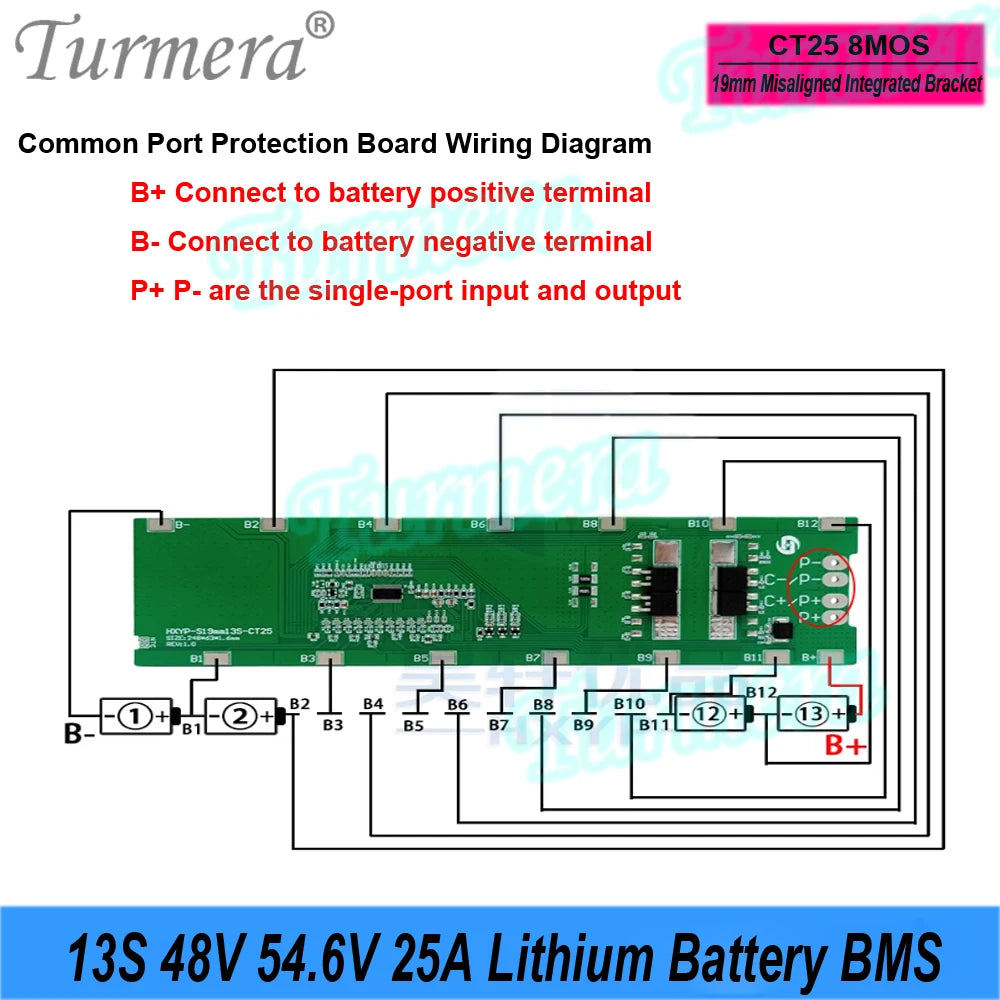

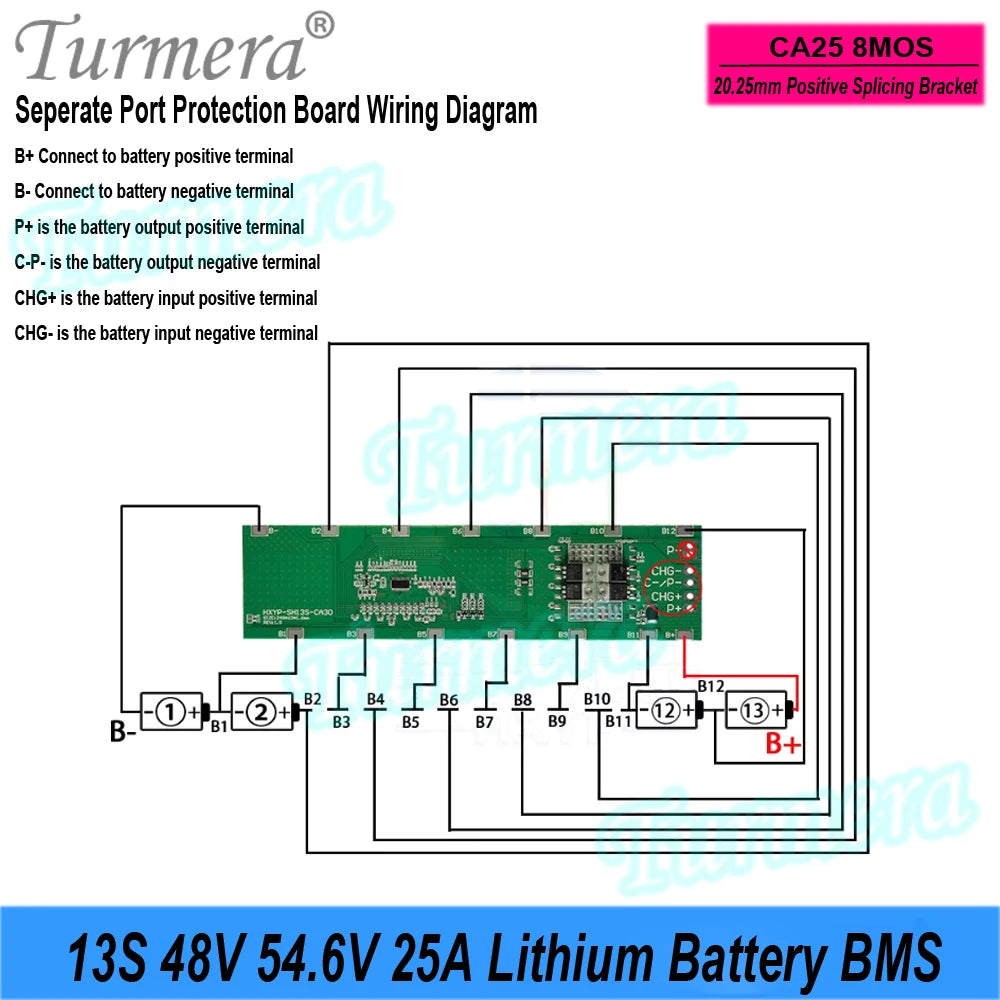

Wiring operations:

(1). The rowing starts with a thin black line to connect B-, the second wire connects to the 1st string of battery positives, followed by each string of batteries

positive pole; then insert the line into the protective plate;

(2) After the wiring is complete, measure the battery B-plus, B-voltage and P-voltage value is the same, that is, the protection board works properly;

Then follow the above to re-operate;

(3) After confirming that the wiring and protection plate is working properly, weld the power cord from the total negative electrode of the core to the B-solder joint of the protection plate;

(4) When removing the protective plate, first pull the line (if there are two lines, first pull the high-voltage line, then pull the low-voltage line), and then remove the power line B-.

Notice:

1. The protective plate of different voltage platforms cannot be mixed, such as the three-way protection plate can not use lithium iron battery;

2. Different manufacturers of the line is not universal, please ensure the use of our company supporting the line;

3. In the test, installation, contact and use of protective plate, to do a good job of static electricity measures;

4. Do not make the cooling surface of the protective plate directly touch the core, otherwise the heat will be transmitted to the core, affecting the safety of the battery;

5. Do not remove or change the protective plate components;

6. If the protective plate is abnormal, please stop using it, and other issues are resolved and reused;

7. Do not allow the two protection plates to be used in series or in parallel.
