Motor Hall sensor YASEMI HOOL For Lithium electric car Balance car

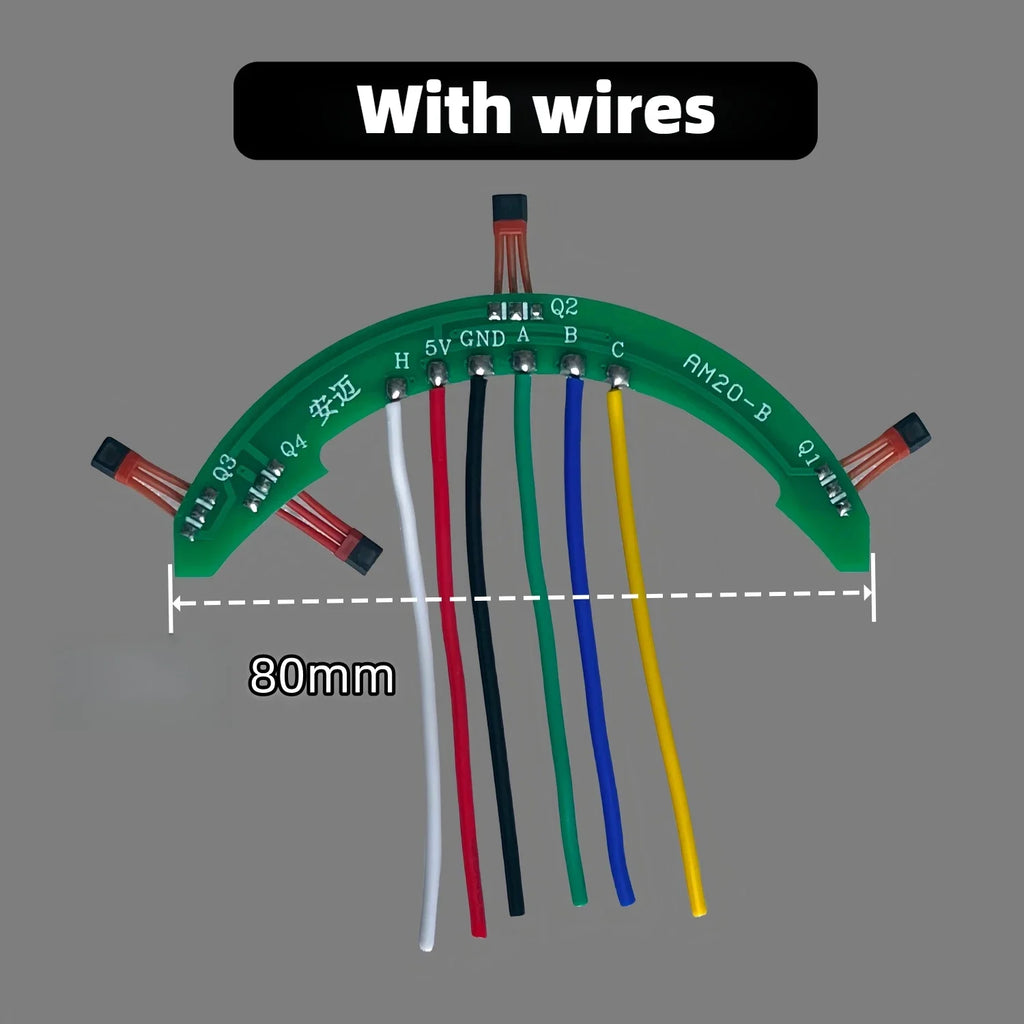

with wires
$47.98
Skip to product information

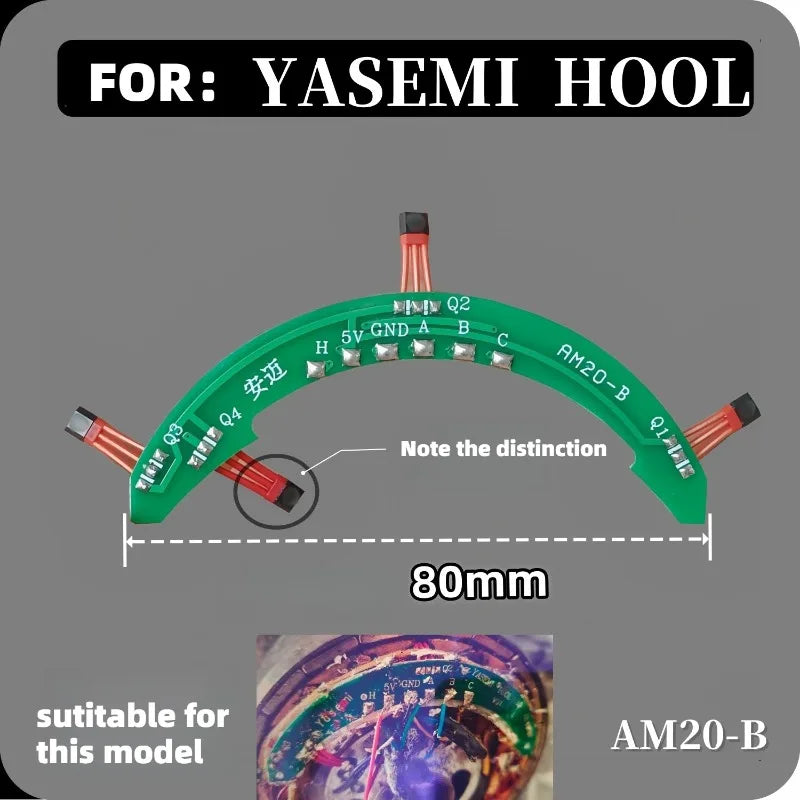

Motor Hall sensor YASEMI HOOL For Lithium electric car Balance car
$47.98
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Material: Plastic
Origin: Mainland China
Type: Hand Tool Parts
Please Note Before Purchase:
Please double-check the size, style, and model (or model number) before placing your order.
The printed markings, sleeve color, and PCB color may vary depending on the production batch. This does not affect the product's performance.
Random Sleeve Color:The color of the sleeve on the sensor is shipped randomly.
Sleeve Purpose:The sleeve is solely a plastic bracket used for insulating and protecting the Hall element.The color does not affect performance.
Installation Recommendation:To avoid potential damage caused by improper installation,we strongly recommend having the sensor installed by a professional technician.
-
This product is a component intendedexclusivelyfor use by qualified repair technicians. Please note that Hall-effect sensors, unlike many other electronic components,cannot be resold once installed.
If you are not a professional technician or lack specific experience in installing such components, please reconsider your purchase.
Before Installation:
Inspect for defects:Please thoroughly check for any quality issues upon receipt. Contact us immediately if you find any problems so we can assist you.
Test functionality:It is crucial to test the component to ensure it is working properly before proceeding with installation.
Please be advised: Once this component is installed, we cannot accept any returns or exchanges. By installing the unit, you acknowledge that it has been tested and is functional, voiding any return eligibility
⚠️ Crucial: Measurements MUST be taken BEFORE installation!

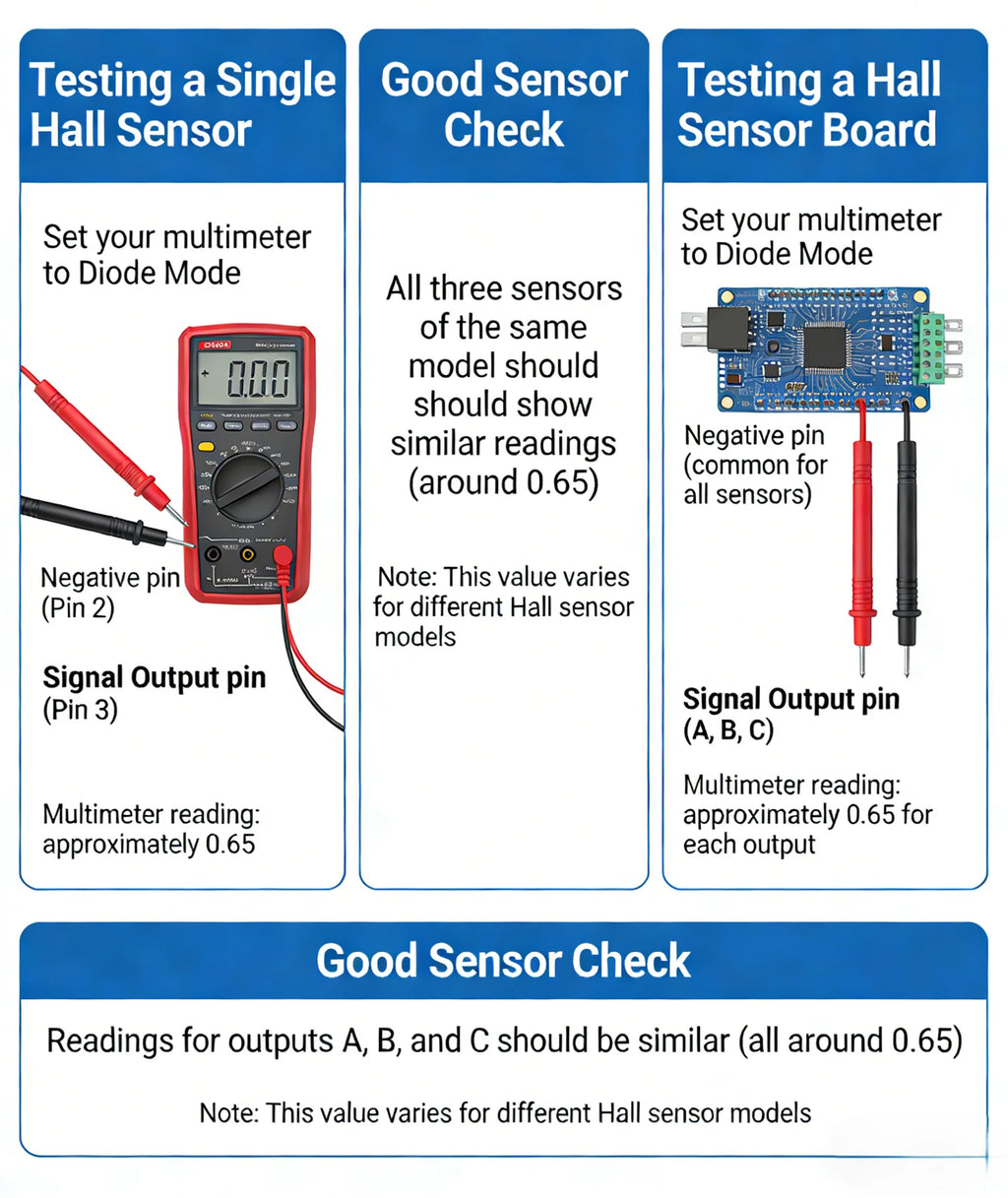

Correct Method to Measure Hall Sensor Functionality:
-
Testing a Single Hall Sensor:
Set your multimeter toDiode Mode.
Place theRED probeon the sensor'sNegative pin (Pin 2).
Place theBLACK probeon theSignal Output pin (Pin 3).
The multimeter should display a reading ofapproximately 0.65.
Good Sensor Check:All three sensors of the same model should showsimilarreadings (around 0.65).Note: This value varies for different Hall sensor models.
-
Testing a Hall Sensor Board:
Set your multimeter toDiode Mode.
Place theRED probeon the board'sNegative pin(common for all sensors).
Place theBLACK probesequentially on eachSignal Output pin (A, B, C).
The multimeter should display a reading ofapproximately 0.65for each output.
Good Sensor Check:Readings for outputs A, B, and C should besimilar(all around 0.65).Note: This value varies for different Hall sensor models.
